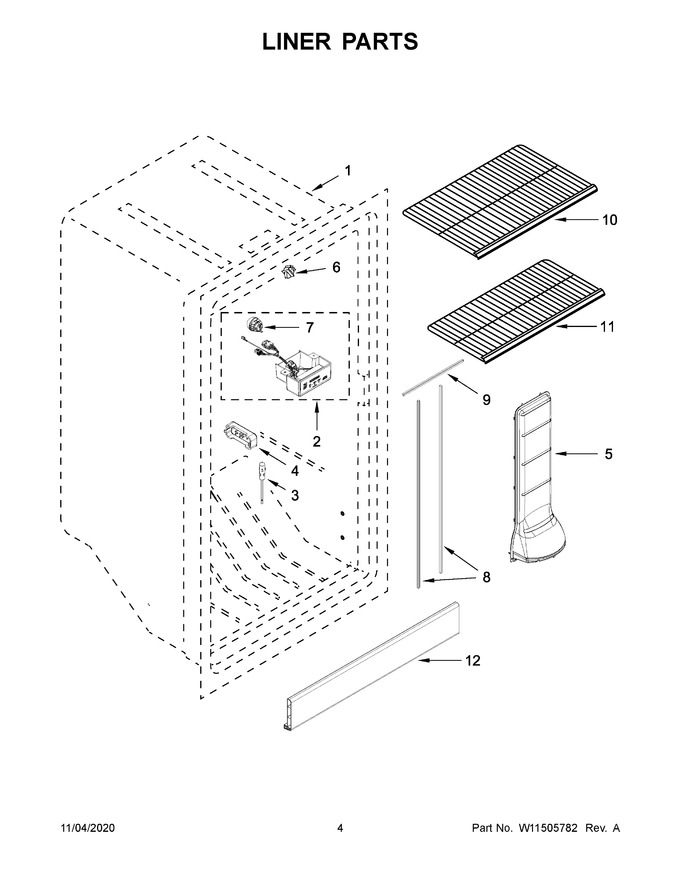

03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | W11496870 | Control Assembly (Replaces: W11396157) |
|
$ 205.01 | |||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 26.77 | |||||
| 5 | W10574583 | Tower, Air |
|
$ 115.79 | |||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 35.29 | ||||
| 7 | W11502762 | Module, Led (Replaces: W11254095) |
|
Immediately | $ 32.13 | ||||
| 8 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.50 | |||||
| 9 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.50 | |||||
| 10 | W10836976 | Wire Shelf, Deep (Replaces: W10569280) |
|
Immediately | $ 130.50 | ||||
| 11 | W10838567 | Wire Shelf, Shallow (Replaces: W10569281) |
|
Immediately | $ 71.69 | ||||
| 12 | W10581588 | Trim, Door |
|
$ 76.98 |
