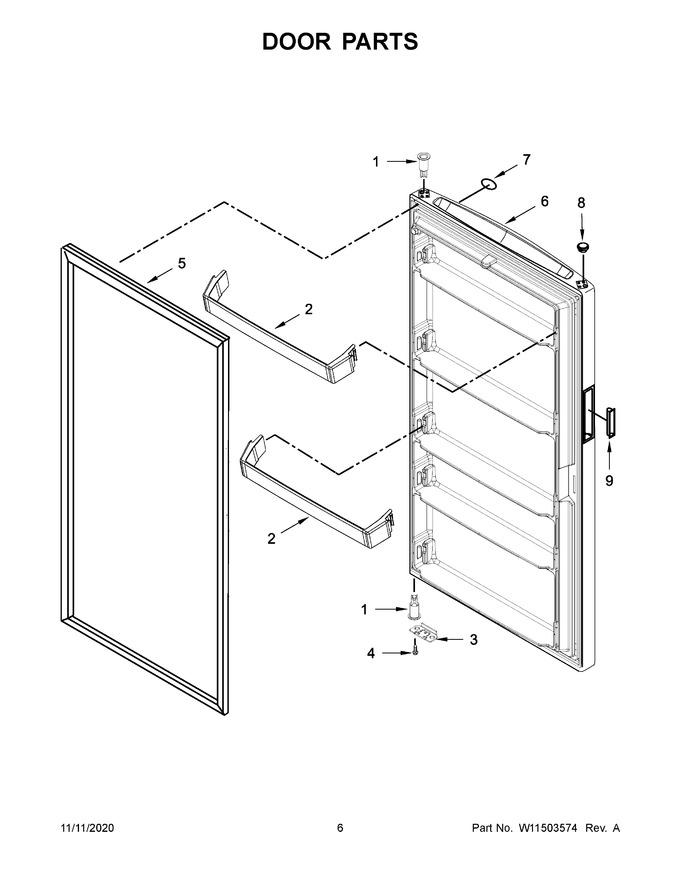

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2314293		Thimble   (Replaces: 2314293)				$ 6.47
2	W10737497		Rail, Door Shelf				$ 82.92
3	W10628869		Bracket, Door Stop				$ 22.56
4	7101P35660		Screw		Appelez-nous	-
5	W10850441		Gasket, Door (white)   (Replaces: W10574473)				$ 356.19
6	W10746778		Assembly, Door (includes Handle Cup) (white)   (Replaces: W10574703)				$ 1,031.94
7	W11428492		Badge, Nameplate (white)   (Replaces: W11046244)				$ 71.63
8	WP2212648		Plug, Hole (white)   (Replaces: 2212648)				$ 7.02
9	W10352523		Handle, Cup (white)				$ 21.60
