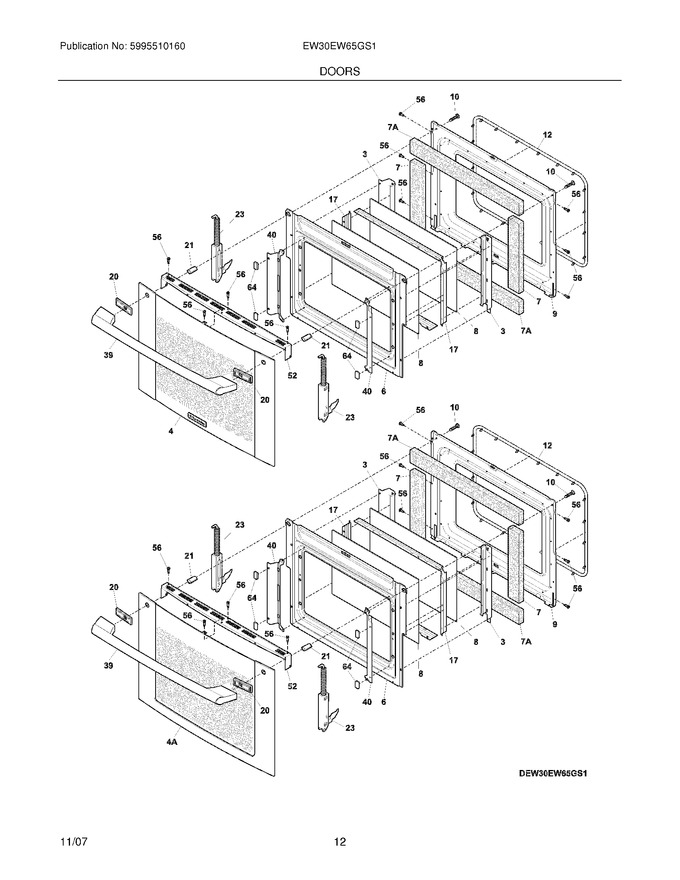

09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	7318902200		Bracket,insulation ,(2)		Appelez-nous	-
4	7318261375		Glass Assy.,upper Door ,black ,outer ,w/trim & Badge		Appelez-nous	-
6	7318904200		Deflector,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 7318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 7316117500)				$ 116.95
9	7318904003		Liner,door				$ 158.36
10	7318902400		Screw,handle Mtg ,8 X 1-1/4 ,(2)		Appelez-nous	-
12	318053132		Gasket,oven Door Seal   (Replaces: 7318053131)			Immediately	$ 159.56
17	318264733		Spacer,glass ,(2)   (Replaces: 7318264711)				$ 72.05
20	7318902902		Spacer,handle ,grey ,(2)		Appelez-nous	-
21	7318902600		Spacer,handle ,(2)		Appelez-nous	-
23	7318900600		Hinge,oven Door		Appelez-nous	-
39	7241761004		Handle,door ,stainless		Appelez-nous	-
40	7318902000		Bracket,glass Mtg ,(2)		Appelez-nous	-
52	7318904701		Trim,door ,black ,upper		Appelez-nous	-
56	75304462581		Screw,8-32 X 5/16		Appelez-nous	-
64	7318165800		Spacer		Appelez-nous	-
4A	7318261376		Glass Assy.,lower Door ,black/stainless		Appelez-nous	-
7A	318372016		Insulation,door ,(2)   (Replaces: 7318372002)				$ 17.72
NI	75304436875		Screw,8-18 X 1/2 ,black		Appelez-nous	-
NI	7316221001		Label,anti-tip		Appelez-nous	-
NI	7318163602		Cleaner,stainless Steel		Appelez-nous	-
NI	75304461333		Screw,10-32 X 17/32		Appelez-nous	-
NI	75304462582		Screw,10-24 X 1.79		Appelez-nous	-
