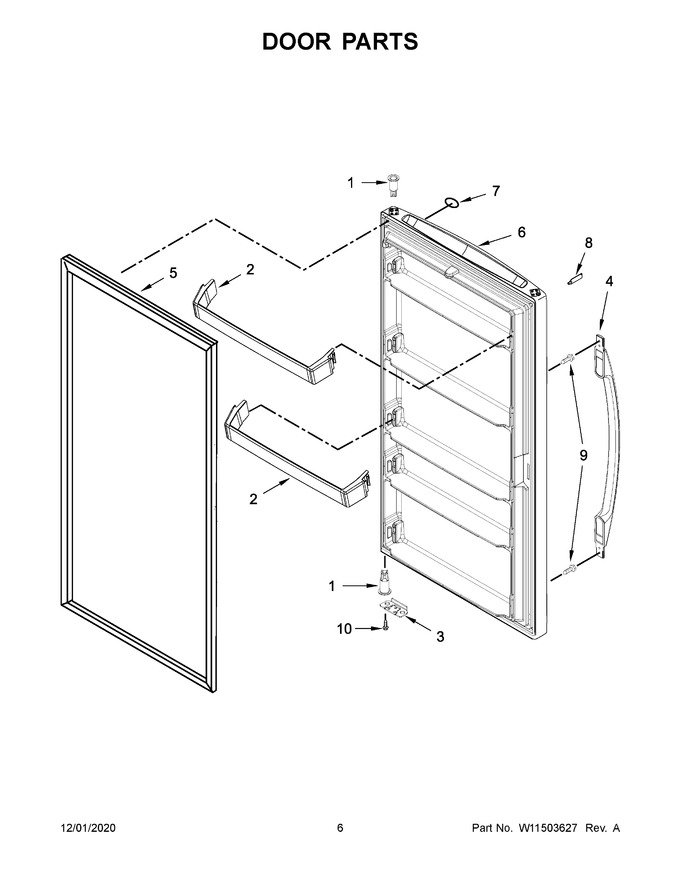

04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.47 | |||||
| 2 | W10737497 | Rail, Door Shelf |
|
$ 82.92 | |||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 22.56 | |||||
| 4 | W10858385 | Handle, Door (white) (Replaces: W10612702) |
|
$ 213.49 | |||||
| 5 | W10733691 | Gasket, Door (white) |
|
$ 241.51 | |||||
| 6 | W10746776 | Door Assembly (includes Lock) (white) (Replaces: W10574702) |
|
$ 797.63 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 8 | 280060106 | Key |
|
- | |||||
| 9 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 10.67 | ||||
| 10 | 7101P35660 | Screw |
|
- |
