SELECT A DIAGRAM

01 - Cover Sheet

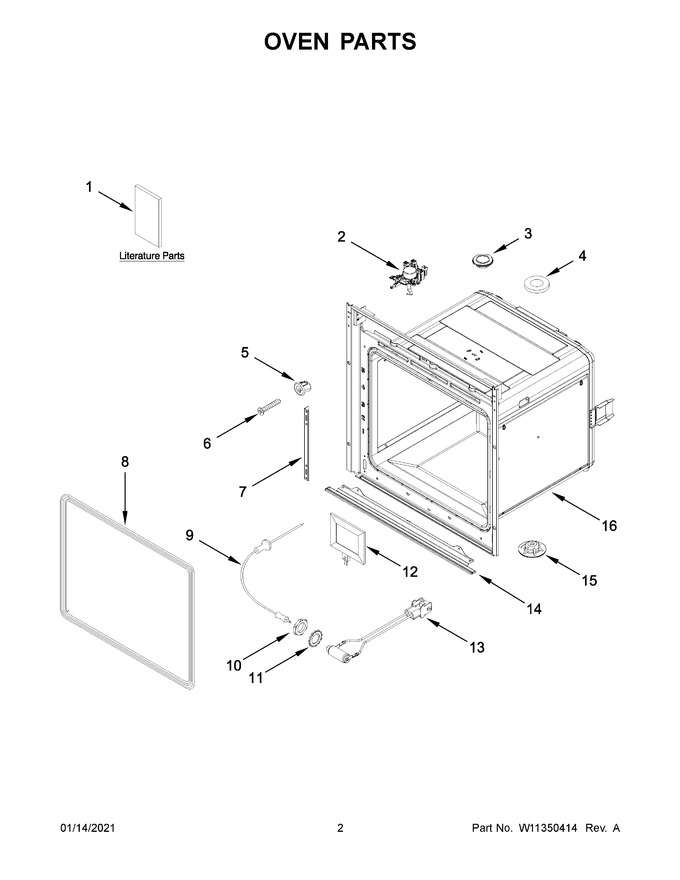

02 - Oven Parts


03 - Control Panel Parts


04 - Oven Door Parts


05 - Internal Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11260094		Installation Instructions		Appelez-nous	-
2	W11347847		Latch, Door			Immediately	$ 273.86
3	W11509867		Cap		Appelez-nous	-
4	8186903		Gasket, Top Panel		Appelez-nous	-
5	W10578780		Bumper				$ 20.04
6	W10646201		Kit, Adjustment Screw			Immediately	$ 27.46
7	W10517968		Hinge, Running Mechanism		Appelez-nous	-
8	W10518387		Gasket, Door				$ 158.97
9	W11348089		Probe, Meat				$ 214.63
10	W11348125		Nut, Meat Probe		Appelez-nous	-
11	W11348127		Washer, Meat Probe		Appelez-nous	-
12	W11348087		Lamp, Halogen 25 Watt (with Gasket)				$ 108.06
13	W11348099		Socket, Meat Probe With Harness				$ 197.82
14	W10517979		Trim, Lower			Immediately	$ 59.66
15	W10545973		Foot, Level Oven		Appelez-nous	-
16	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
1A	W11260125		Use And Care Guide		Appelez-nous	-
1B	W11260148		Tech Sheet		Appelez-nous	-
NI	W11348047		Kit, Power Cord (no Plug)				$ 143.79
NI	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
