SELECT A DIAGRAM

01 - Cover Sheet

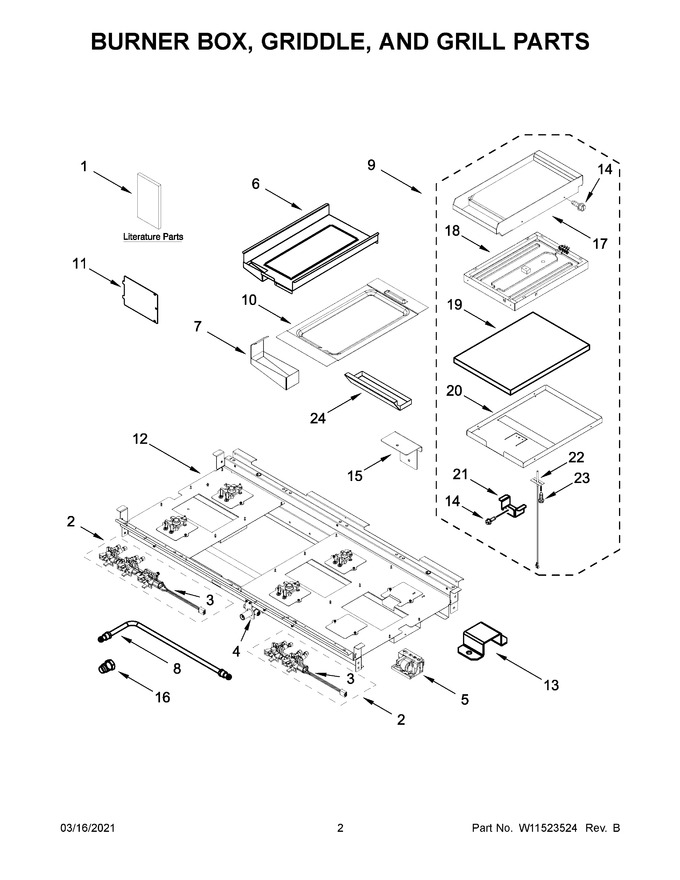

02 - Burner Box, Griddle, And Grill Parts


03 - Cooktop, Burner, Griddle, And Grill Parts


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11177275		Guide, Use And Care		Appelez-nous	-
2	W11328262		Assembly, Valve Manifold (left Front, Left Rear, And Grill)   (Replaces: W10893054)				$ 381.39
3	W11328263		Switch, Harness   (Replaces: W11106302)				$ 293.90
4	W11320153		Bracket, Manifold   (Replaces: W11121194)				$ 68.50
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 66.41
6	W11328011		Capture, Grill Grease   (Replaces: W11120957)		Appelez-nous	-
7	W11328012		Tray, Grill Drip   (Replaces: W11174414)		Appelez-nous	-
8	W11328963		Tube, Manifold Supply (left)   (Replaces: W10892796)		Appelez-nous	-
9	W11602621		Assembly, Griddle Module   (Replaces: W10891745)			Immediately	$ 1,276.19
10	W11328372		Deflector, Grill Heat   (Replaces: W11120965)		Appelez-nous	-
11	W10115843		Cover, Ignition		Appelez-nous	-
12	NP		Following Parts Not Illustrated		Appelez-nous	-
13	W11174418		Bracket, Grill Orifice Holder		Appelez-nous	-
14	W10162096		Screw				$ 18.77
15	W11285353		Bracket, Grill Grease Capture		Appelez-nous	-
16	W10892063		Plug, Supply Outlet		Appelez-nous	-
17	W11602622		Module, Griddle   (Replaces: W10891567)		Appelez-nous	-
18	W11319602		Element, Griddle   (Replaces: W10891698)				$ 316.70
19	W11319228		Insulation, Griddle   (Replaces: W11121383)		Appelez-nous	-
20	W11330430		Tray, Griddle Insulation		Appelez-nous	-
21	W11319226		Bracket, Griddle-rtd   (Replaces: W11121384)		Appelez-nous	-
22	W11319618		Sensor, Griddle   (Replaces: W10891584)				$ 195.84
23	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
24	W10276497		Tray, Griddle Drip				$ 341.06
1A	W11177278		Instructions, Installation		Appelez-nous	-
1B	W11177312		Guide, Quick Start		Appelez-nous	-
1C	W11184746		Guide, Internet Connectivity		Appelez-nous	-
1D	W11202375		Diagram, Wiring		Appelez-nous	-
1E	W11202275		Sheet, Tech		Appelez-nous	-
2A	W11320019		Assembly, Valve Manifold (right Front And Right Rear)   (Replaces: W10893058)			Immediately	$ 384.81
3A	W11320016		Switch, Harness   (Replaces: W11106300)			Immediately	$ 232.13
8A	W11320139		Tube, Manifold Supply (right Center)   (Replaces: W10892789)		Appelez-nous	-
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11317786		Harness, Communication   (Replaces: W11200318)			Immediately	$ 113.00
NI	W11317787		Harness, Griddle   (Replaces: W10903727)				$ 100.08
NI	W11200333		Harness, Cooktop		Appelez-nous	-
NI	W11200305		Harness, Main (48")				$ 331.64
NI	W11428599		Kit, Lp Conversion   (Replaces: W11238041)			Immediately	$ 41.00
NI	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 97.48
NI	W11446236		Ignitor Wire, Wire-electrode Bake   (Replaces: W11311196)				$ 18.14
NI	W10624584		Cord, Power				$ 162.49
NI	W10780278		Harness, Door Lock				$ 82.17
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 43.65
NI	4450800		Screw, Grounding				$ 11.55
NI	W11446239		Ignitor Wire, Wire-electrode Broil   (Replaces: W11311197)				$ 20.55
NI	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
