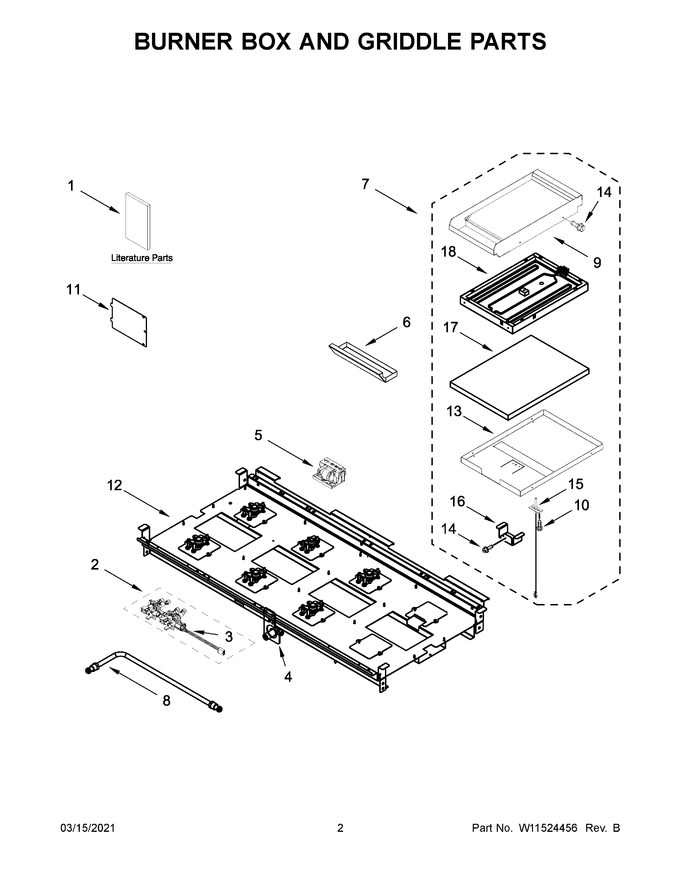

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11177275 | Guide, Use And Care |
|
- | |||||
| 2 | W11320017 | Assembly, Valve Manifold (left Front And Left Rear) (Replaces: W11183722) |
|
$ 385.13 | |||||
| 3 | W11320016 | Switch, Harness (Replaces: W11106300) |
|
Immediately | $ 232.13 | ||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 68.50 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 66.41 | ||||
| 6 | W10276497 | Tray, Griddle Drip |
|
$ 341.06 | |||||
| 7 | W11602621 | Assembly, Griddle Module (Replaces: W10891745) |
|
Immediately | $ 1,276.19 | ||||
| 8 | W11320029 | Tube, Manifold Supply (left) (Replaces: W10892784) |
|
- | |||||
| 9 | W11602622 | Module, Griddle (Replaces: W10891567) |
|
- | |||||
| 10 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 11 | W10115843 | Cover, Ignition |
|
- | |||||
| 12 | NP | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| 13 | W11330430 | Tray, Griddle Insulation |
|
- | |||||
| 14 | W10162096 | Screw |
|
$ 18.77 | |||||
| 15 | W11319618 | Sensor, Griddle (Replaces: W10891584) |
|
$ 195.84 | |||||
| 16 | W11319226 | Bracket, Griddle-rtd (Replaces: W11121384) |
|
- | |||||
| 17 | W11319228 | Insulation, Griddle (Replaces: W11121383) |
|
- | |||||
| 18 | W11319602 | Element, Griddle (Replaces: W10891698) |
|
$ 316.70 | |||||
| 1A | W11177278 | Instructions, Installation |
|
- | |||||
| 1B | W11184746 | Guide, Internet Connectivity |
|
- | |||||
| 1C | W11177312 | Guide, Quick Start |
|
- | |||||
| 1D | W11202375 | Diagram, Wiring |
|
- | |||||
| 1E | W11202275 | Sheet, Tech |
|
- | |||||
| 2A | W11320019 | Assembly, Valve Manifold (left Center Front And Left Center Rear) (Replaces: W10893058) |
|
Immediately | $ 384.81 | ||||
| 2B | W11320025 | Assembly, Valve Manifold (right Center Front And Right Center Rear) (Replaces: W10893051) |
|
Immediately | $ 384.60 | ||||
| 8A | W11320027 | Tube, Manifold Supply (left Center) (Replaces: W10892775) |
|
- | |||||
| 8B | W11320139 | Tube, Manifold Supply (right Center) (Replaces: W10892789) |
|
- | |||||
| NI | W11428599 | Kit, Lp Conversion (Replaces: W11238041) |
|
Immediately | $ 41.00 | ||||
| NI | W11317791 | Harness, Wifi (Replaces: W11242785) |
|
$ 97.48 | |||||
| NI | W11317786 | Harness, Communication (Replaces: W11200318) |
|
Immediately | $ 113.00 | ||||
| NI | W11317788 | Harness, Cooktop (Replaces: W11200329) |
|
$ 176.63 | |||||
| NI | W11446236 | Ignitor Wire, Wire-electrode Bake (Replaces: W11311196) |
|
$ 18.14 | |||||
| NI | W10624584 | Cord, Power |
|
$ 162.49 | |||||
| NI | W10780278 | Harness, Door Lock |
|
$ 82.17 | |||||
| NI | W11317787 | Harness, Griddle (Replaces: W10903727) |
|
$ 100.08 | |||||
| NI | W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 43.65 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 11.55 | |||||
| NI | W11446239 | Ignitor Wire, Wire-electrode Broil (Replaces: W11311197) |
|
$ 20.55 | |||||
| NI | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| NI | W11200305 | Harness, Main (48") |
|
$ 331.64 | |||||
| NI | NP | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- |
