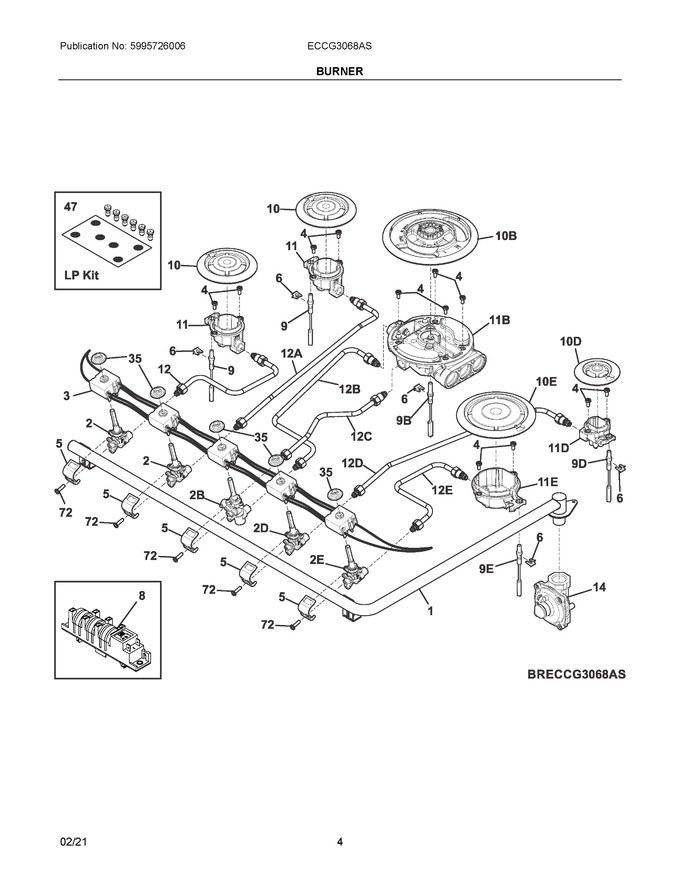

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304527638		Manifold, Gas		Appelez-nous	-
2	5304527639		Valve, Saddle, 1125/1250 Btu, Blue Stem				$ 56.88
3	5304527660		Harness Assembly, Backlit Knobs, W/ignitr Swtchs		Appelez-nous	-
4	5304527676		Screw, Hex Head, M4		Appelez-nous	-
5	357733402		Bracket, Valve Fixing				$ 9.66
6	5304538490		Spring Clip, Ignitor   (Replaces: 5304516455)				$ 4.08
8	5304537114		Module, Spark, 6 Outputs   (Replaces: 5304505696)			Immediately	$ 47.88
9	5304527645		Ignitor, Spark, Lh Front/rear		Appelez-nous	-
10	5304527673		Crown, Burner, 9.5k				$ 56.77
11	5304527642		Holder Assembly, Ignitor/orifice, 9.5k Btu, W/ng Orifice		Appelez-nous	-
12	5304527650		Tube, Burner, Lh Front		Appelez-nous	-
14	5304519943		Regulator, Pressure				$ 129.93
35	5304527661		Gasket, Backlit Knob		Appelez-nous	-
47	5304527680		Lp Gas, Conversion Kit				$ 88.58
72	5304508436		Screw, Saddle Valve, M4		Appelez-nous	-
10B	5304527675		Crown, Burner, 20k, Dual Burner				$ 137.37
10D	5304527672		Crown, Burner, 5k				$ 49.85
10E	5304527674		Crown, Burner, 12k				$ 67.85
11B	5304527640		Holder Assembly, Ignitor/orifice, 20k Btu, W/2 Ng Orifices				$ 180.69
11D	5304527641		Holder Assembly, Ignitor/orifice, 5k Btu		Appelez-nous	-
11E	5304527643		Holder Assembly, Ignitor/orifice, 12k Btu, W/ng Orifice		Appelez-nous	-
12A	5304527651		Tube, Burner, Lh Rear		Appelez-nous	-
12B	5304527653		Tube, Burner, Center Left		Appelez-nous	-
12C	5304527652		Tube, Burner, Center Front		Appelez-nous	-
12D	5304527649		Tube, Burner, Rh Rear		Appelez-nous	-
12E	5304527648		Tube, Burner, Rh Front		Appelez-nous	-
2B	5304508435		Valve, Saddle, 1500/2000 Btu, Yellow Stem, Dual Burner				$ 190.81
2D	5304508471		Valve, Saddle, 670/750 Btu, Orange Stem				$ 68.26
2E	5304508472		Valve, Saddle, 1350/1500 Btu, Pink Stem				$ 68.26
9B	5304527647		Ignitor, Spark, Center				$ 17.50
9D	5304527644		Ignitor, Spark, Rh Rear		Appelez-nous	-
9E	5304527646		Ignitor, Spark, Rh Front				$ 20.51
NI	305338602		Screw		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	5304519944		Cap, Regulator, Red		Appelez-nous	-
NIB	5304516456		Wire, Grounding		Appelez-nous	-
