01 - Cover Sheet

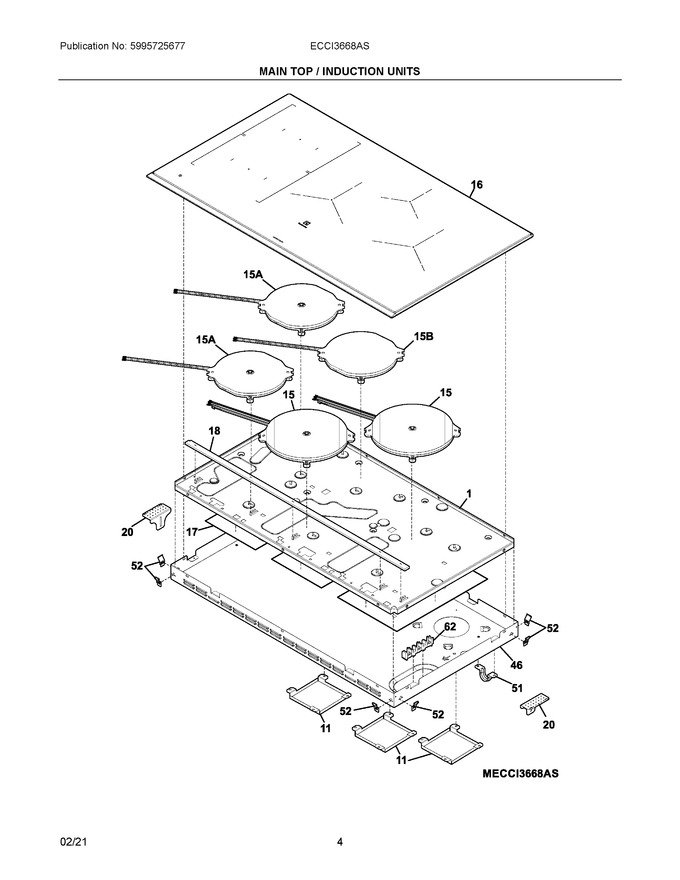

02 - Controls / Generator Units


03 - Main Top / Induction Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304527629		Carrier, Induction Coil		Appelez-nous	-
11	5304527609		Cover, Fan		Appelez-nous	-
15	357249669		Element, Induction Coil, 210mm				$ 180.50
16	5304527896		Maintop, Assembly, Glass/steel, Black/stainless			Immediately	$ 1,583.11
17	5304527628		Insulation, Mica Sheet		Appelez-nous	-
18	5304527630		Insulation		Appelez-nous	-
20	5304538915		Bracket, Installation, Granite Counter   (Replaces: 5304527624)			Immediately	$ 5.41
46	5304527625		Box, Outer		Appelez-nous	-
51	318389600		Bracket, Conduit Mtg.				$ 12.76
52	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
15A	357226372		Element, Induction Coil, 180 Mm				$ 164.16
15B	357226271		Element, Induction Coil, 140 Mm				$ 137.82
NI	305309704		Screw, St, 4.2 : 12, (9)		Appelez-nous	-
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NI	5304462994		Screw, 8-32 X 5/16		Appelez-nous	-
NIA	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
NIA	305309608		Screw, M4		Appelez-nous	-
NIB	305376201		Nut, Terminal Block, (2)		Appelez-nous	-
NIB	5303307980		Screw, 8-32 X 0.437, (4)			Immediately	$ 14.18
NIC	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
