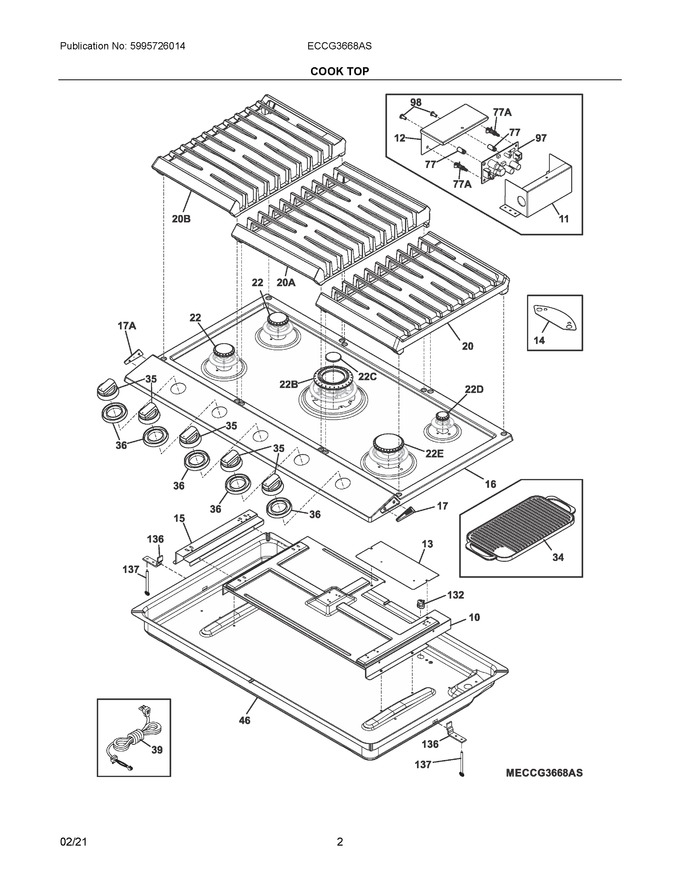

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304527654		Shield, Heat		Appelez-nous	-
11	5304527655		Shield, Heat, Smps Board		Appelez-nous	-
12	5304527656		Cover, Smps Board				$ 90.25
13	5304527658		Cover, Spark Module		Appelez-nous	-
14	5304527659		Shield, Top Breather		Appelez-nous	-
15	5304527689		Shield, Heat, Side		Appelez-nous	-
16	5304527691		Maintop, Assembly, Stainless		Appelez-nous	-
17	5304527665		Side Plate, Maintop, Rh		Appelez-nous	-
20	5304527693		Grate, Burner, Black, Rh				$ 217.66
22	5304527669		Cap, Burner, 9.5k, Black				$ 136.31
34	5304527681		Griddle, Gas Top		Appelez-nous	-
35	5304527679		Knob, Backlit, Stainless			Immediately	$ 131.19
36	5304527677		Bezel, Backlit Knob			Immediately	$ 37.16
39	305574902		Power Cord, Electrical, Supply				$ 69.46
46	5304527685		Box, Burner		Appelez-nous	-
77	316247900		Spacer, Power Board				$ 44.65
97	5304527657		Pc Board, Smps, Backlit Knobs		Appelez-nous	-
98	305309608		Screw, M4		Appelez-nous	-
132	5304513507		Bushing, Strain Relief				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
17A	5304527666		Side Plate, Maintop, Lh		Appelez-nous	-
20A	5304527694		Grate, Burner, Black, Center				$ 259.31
20B	5304527692		Grate, Burner, Black, Lh				$ 244.40
22B	5304527671		Cap, Burner, 20k, Brass, Outer		Appelez-nous	-
22C	5304527670		Cap, Burner, 20k, Brass, Inner		Appelez-nous	-
22D	5304527667		Cap, Burner, 5k, Black		Appelez-nous	-
22E	5304527668		Cap, Burner, 12k, Black				$ 185.85
77A	316114100		Spacer				$ 60.96
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	5304527676		Screw, Hex Head, M4		Appelez-nous	-
NI	305338604		Screw, 6-32 X 1/4", Back		Appelez-nous	-
NI	305338602		Screw		Appelez-nous	-
NIA	305424100		Tape, Aluminum		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	5304527663		Tape, Side Plate, Rh		Appelez-nous	-
NIA	5304527678		Tape, Knob Bezel		Appelez-nous	-
NIAA	5304527664		Tape, Side Plate, Lh		Appelez-nous	-
