SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

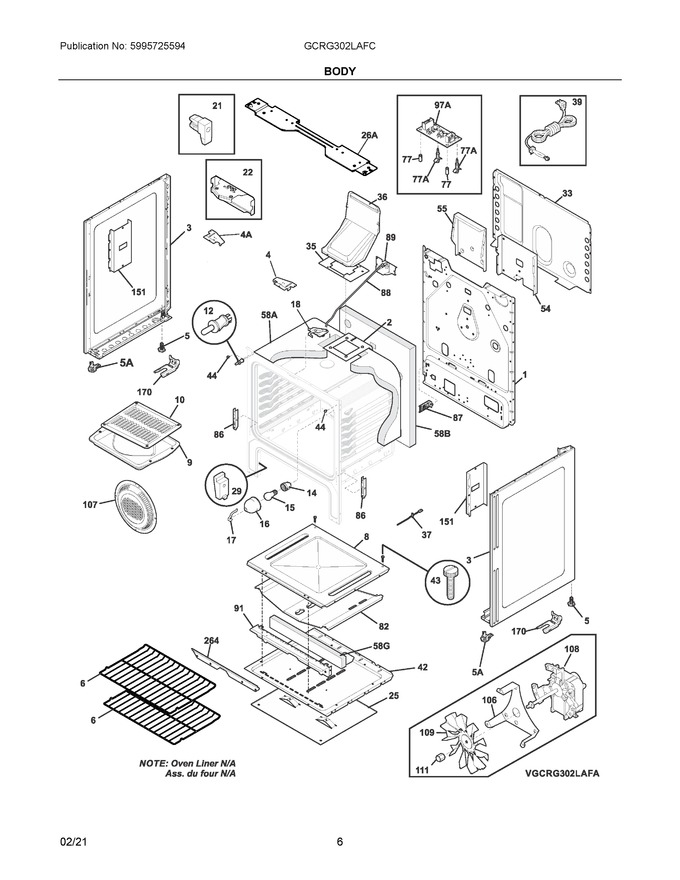

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401608		Back, Main				$ 135.75
2	316437100		Brace, Oven Top				$ 31.90
3	316400144		Panel, Bodyside, Black, Rh			Immediately	$ 134.69
4	316605400		Bracket-maintop, Rh		Appelez-nous	-
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316496201		Rack, Oven			Immediately	$ 103.48
8	316400603		Panel, Oven Bottom			Immediately	$ 186.56
9	316081900		Pan, Broileroptional Access0ry				$ 65.89
10	316082000		Insert, Broiler Panoptional Access0ry				$ 68.85
12	316445500		Switch, Oven Light, Door Frame			Immediately	$ 54.74
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light			Immediately	$ 20.48
16	5304524341		Lens, Oven Light, Glass			Immediately	$ 14.18
17	316087500		Retainer, Lens				$ 56.70
18	316405800		Latch Assembly, Oven Door			Immediately	$ 56.74
21	316408000		Clip, Bodyside				$ 18.20
22	316286300		Bracket-bodyside, (2)				$ 17.72
25	316406200		Shield, Heat, Lower				$ 87.97
33	316402500		Shield, Rear Wall				$ 120.49
35	316542102		Gasket-flue				$ 12.13
36	316208901		Flue				$ 129.68
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
39	5304534377		Cord, Electric Power   (Replaces: 5304515659)				$ 27.36
42	316400700		Shield, Wool, Lower				$ 146.36
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
44	316517600		Bumper, Front, Main				$ 12.05
54	5304512756		Sheild, Igniter Heat		Appelez-nous	-
55	5304510473		Shield, Flue				$ 23.83
77	316247900		Spacer, Power Board				$ 44.65
82	316400801		Shield, Bake Burner				$ 164.57
86	316441300		Receptacle, Hinge				$ 21.97
87	316401202		Bracket, Harness		Appelez-nous	-
88	316232702		Rod, Auto Latch				$ 12.89
89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 53.34
91	807219501		Shield, Burner, Front		Appelez-nous	-
106	316404100		Bracket, Motor Mtg.				$ 63.70
107	316026701		Cover, Fan				$ 408.89
108	316256900		Motor-fan				$ 191.27
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
151	5304518926		Shield, Heat, Bodyside, (2)				$ 52.72
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 18.91
264	316404700		Bracket, Air Dam		Appelez-nous	-
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
3A	316400145		Panel, Bodyside, Black, Lh			Immediately	$ 133.93
4A	316605401		Bracket-maintop, Lh		Appelez-nous	-
58A	316403700		Insulation, Oven Wrapper				$ 304.06
58B	316403600		Insulation, Oven Back				$ 125.75
58G	08067973		Insulation, Main Front				$ 51.74
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg			Immediately	$ 15.08
77A	316114100		Spacer				$ 60.96
97A	5304515148		Board, Ac Detect				$ 43.12
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316231800		Cover, Hole, Conv. Element		Appelez-nous	-
NI	5303288566		Screw, Tr Hd Sqd Ab, 8-18 X 0.25, (8)				$ 2.17
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.05
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.78
NI	5304516049		Harness, Main				$ 141.99
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.73
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIA	316432800		Clip, Wire		Appelez-nous	-
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIC	316541700		Template, Anti-tip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
