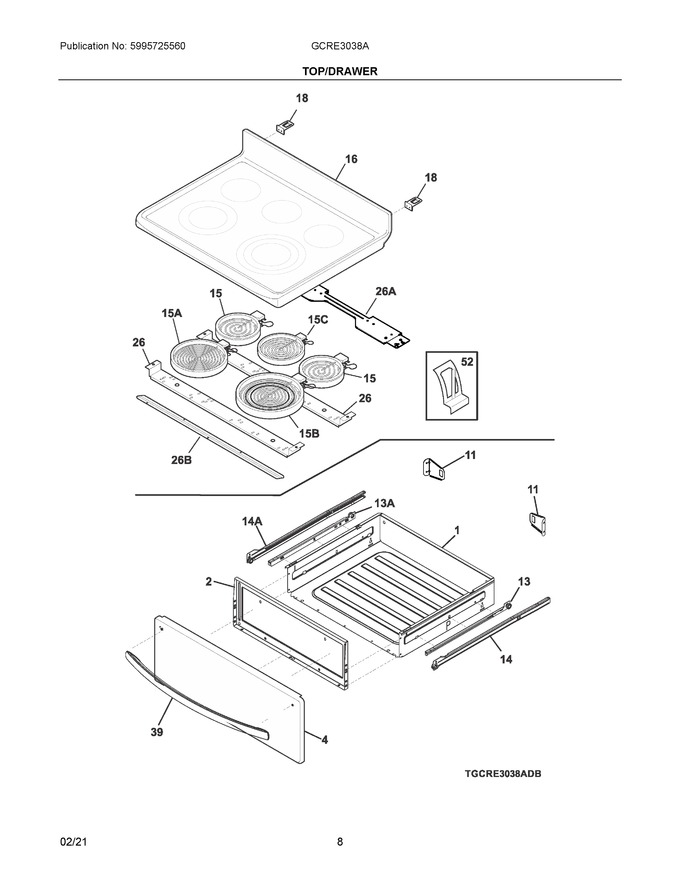

01 - Cover Sheet
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527989 | Liner, Drawer |
|
$ 28.83 | |||||
| 4 | 5304516891 | Panel, Drawer, Dark Stainless |
|
$ 157.79 | |||||
| 10 | 5304507924 | Screw, Handle Mtg, 10-24 X 2.188, (2) (Replaces: 316513301) |
|
Immediately | $ 16.48 | ||||
| 11 | 5304517906 | Bracket, Rear Support, (2) |
|
$ 11.38 | |||||
| 13 | 5304517905 | Glide, Drawer, Black, Rh Inner |
|
$ 16.69 | |||||
| 14 | 5304517904 | Glide, Drawer, Black, Rh Outer |
|
Immediately | $ 25.79 | ||||
| 15 | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 122.86 | ||||
| 16 | 5304513242 | Smoothtop, Assembly, Glass/steel, Black |
|
$ 545.27 | |||||
| 18 | 316580800 | Bracket-hinge, Main Top |
|
Immediately | $ 9.86 | ||||
| 26 | 5304512926 | Channel, Element Support |
|
$ 46.22 | |||||
| 39 | 316554009 | Handle, Door/drawer, Black Stainless, W/spacers |
|
$ 189.41 | |||||
| 43 | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 13.46 | |||||
| 52 | 316461700 | Clip, Element Mtg |
|
$ 12.05 | |||||
| 13A | 5304517903 | Glide, Drawer, Black, Lh Inner |
|
$ 28.97 | |||||
| 14A | 5304517902 | Glide, Drawer, Black, Lh Outer |
|
Immediately | $ 47.98 | ||||
| 15A | 316530001 | Element, Surface, 9", 3200w, Turbo Boil |
|
Immediately | $ 216.16 | ||||
| 15B | 316282103 | Element, 6/12", Surface, 3000w, Radiant |
|
$ 297.17 | |||||
| 15C | 5304521951 | Element, Warmer, 100 W |
|
Immediately | $ 64.46 | ||||
| 26A | 316498200 | Bracket-support, Chassis, Aluminum |
|
$ 52.33 | |||||
| 26B | 316607600 | Bracket, Chassis Support, Front |
|
$ 52.33 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5303288572 | Screw-handle Mtg |
|
- | |||||
| NI | 5304525259 | Harness, Surface, R20 |
|
$ 157.74 | |||||
| NI | 316418901 | Screw, Trilobe, 10-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.28 |
