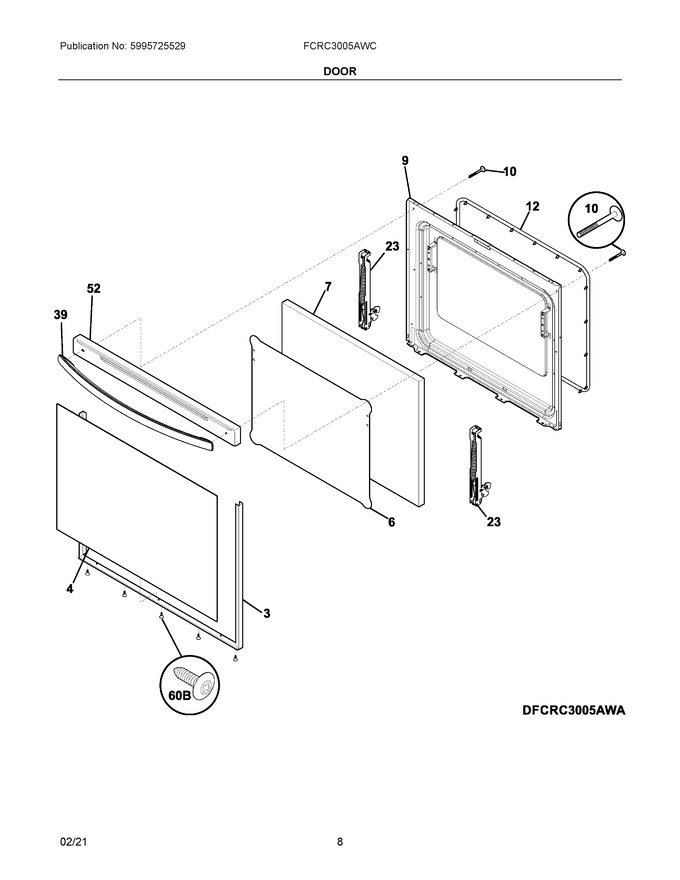

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935318		Trim Kit-door, 3 Sided, White, W/tape   (Replaces: 5303935393)			Immediately	$ 83.64
4	316559111		Glass Assembly, Outer, White		Appelez-nous	-
6	316435802		Shield-wool		Appelez-nous	-
7	316405603		Insulation, Oven Door		Appelez-nous	-
9	316423716		Liner, Oven Door		Appelez-nous	-
10	316433300		Screw, 10-14 X 2.125", Handle Mtg.			Immediately	$ 27.50
12	5304498835		Seal, Oven Door   (Replaces: 316403101)			Immediately	$ 88.74
23	316575924		Hinge, Oven Door				$ 64.49
39	5304522047		Handle, Door			Immediately	$ 122.63
52	316575500		Cap, Door Trim, White			Immediately	$ 122.09
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316483102		Label, Anti-tip				$ 3.56
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
