SELECT A DIAGRAM

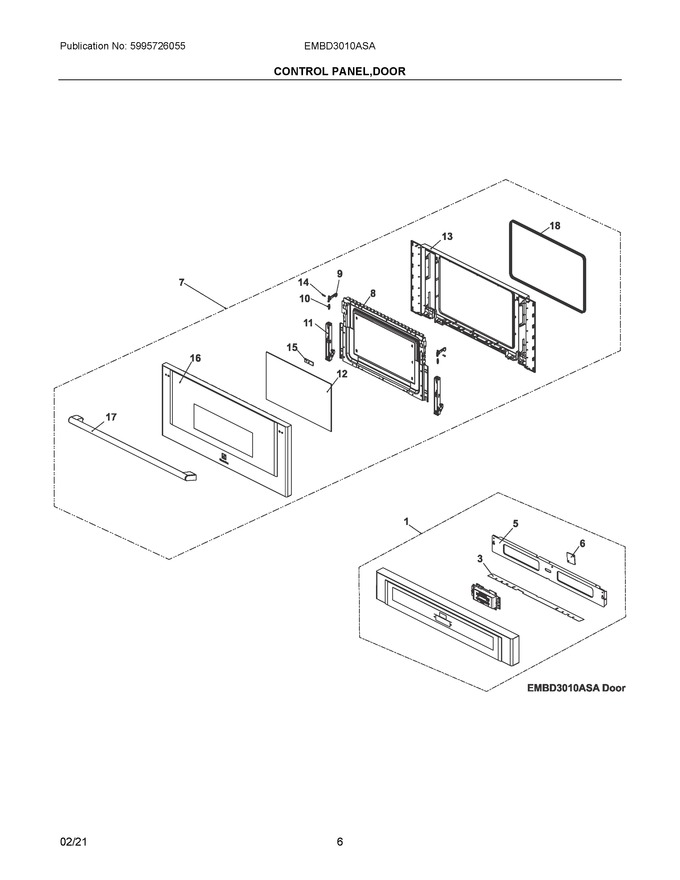

01 - Cover Sheet


02 - Oven,cabinet


03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304527868		Control Panel, Assembly, Glass/steel, Black/stainless, Complete, W/control			Immediately	$ 545.47
3	5304527870		Shield, Control Panel		Appelez-nous	-
5	5304515310		Bracket, Control Panel		Appelez-nous	-
6	5304515311		Cover, Light Block		Appelez-nous	-
7	5304527872		Door Assembly, Complete, Glass/steel, Black/stainless				$ 910.94
8	5304515300		Door Frame, Assembly		Appelez-nous	-
9	5304514310		Latch, Door		Appelez-nous	-
10	5304514311		Spring, Door Latch		Appelez-nous	-
11	5304515301		Hinge, Assembly				$ 188.78
12	5304514306		Glass, Door, Middle			Immediately	$ 159.96
13	5304515302		Cover, Choke, Door				$ 99.62
14	5304514312		Pin, Latch		Appelez-nous	-
15	5304527873		Bracket, Plastic		Appelez-nous	-
16	5304527874		Door Assembly, Outer, Glass/steel, Black/stainless		Appelez-nous	-
17	5304527875		Handle, Door, Stainless		Appelez-nous	-
18	5304515305		Gasket, Door, Silicone				$ 98.32

    View Diagram in Separate Window       Print Part List
