SELECT A DIAGRAM

01 - Cover Sheet

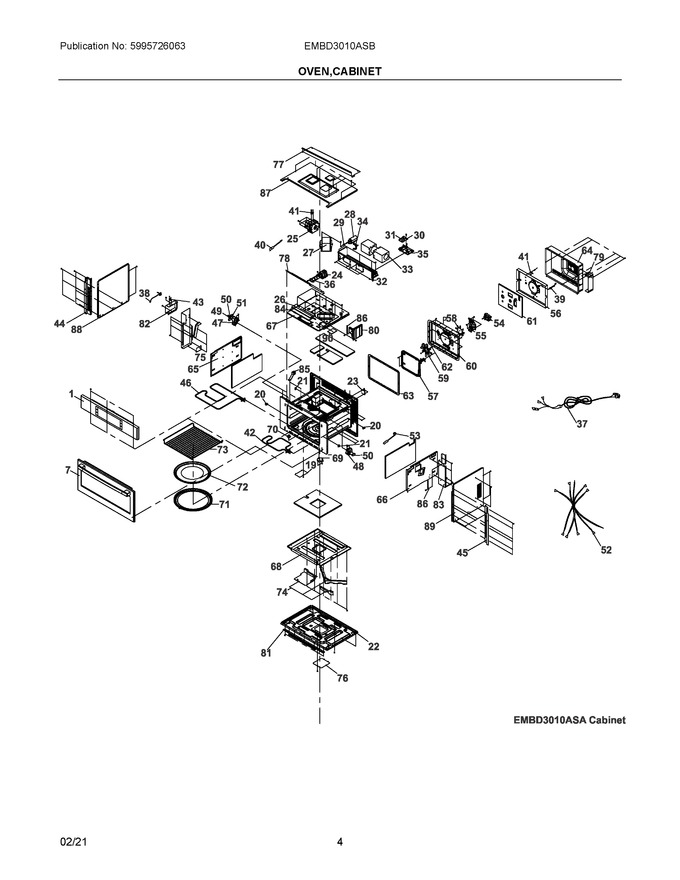

02 - Oven,cabinet


03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304527868		Control Panel, Assembly, Glass/steel, Black/stainless, Complete, W/control			Immediately	$ 545.47
7	5304527872		Door Assembly, Complete, Glass/steel, Black/stainless				$ 910.94
19	5304514227		Cover, Wave Guide			Immediately	$ 8.68
20	5304514283		Support, Shelf, Lhf/rhr				$ 10.94
21	5304514287		Support, Shelf, Rhf/lhr				$ 10.85
22	5304514238		Base Plate				$ 124.03
23	5304515311		Cover, Light Block		Appelez-nous	-
24	5304514247		Cover, Lamp				$ 12.05
25	5304514250		Magnetron			Immediately	$ 433.94
26	5304518909		Barcket, Control Board, Main				$ 39.29
27	5304514249		Transformer, High Voltage				$ 325.22
28	5304513458		Capacitor, High Voltage			Immediately	$ 124.39
29	5304513459		Diode, High Voltage			Immediately	$ 30.37
30	5304525109		Filter, Noise, Electronic				$ 86.00
31	5304514258		Fuse			Immediately	$ 13.83
32	5304514254		Bracket, Exhaust Fan		Appelez-nous	-
33	5304514255		Exhaust Fan, Assembly, W/motor				$ 221.55
34	5304513482		Holder, Hv Capacitor		Appelez-nous	-
35	5304515326		Holder, Noise Filter				$ 18.79
36	5304527876		Bulb, Lamp		Appelez-nous	-
37	5304515312		Power Cord, Electric				$ 173.50
38	5304509652		Sensor, Humidity				$ 305.46
39	5304527877		Sensor, Temperature				$ 34.70
40	5304514252		Fuse Assembly, High Voltage				$ 32.58
41	5304515313		Thermostat, 160/95			Immediately	$ 31.66
42	5304515314		Heater, Lower		Appelez-nous	-
43	5304514270		Thermostat, Heater, 130c/120c				$ 18.08
44	5304515315		Bracket, Trim, Lh			Immediately	$ 41.93
45	5304515316		Bracket, Trim, Rh			Immediately	$ 47.71
46	5304514233		Heater, Upper				$ 65.79
47	5304515317		Latch Board, Lh			Immediately	$ 31.08
48	5304515318		Latch Board, Rh			Immediately	$ 31.79
49	5304514265		Rod, Release			Immediately	$ 5.21
50	5304514264		Switch, Micro			Immediately	$ 36.05
51	5304514266		Switch, Micro, Monitor			Immediately	$ 27.77
52	5304515319		Harness, Wiring, Main				$ 287.97
53	5304527878		Harness, Wiring, Motor				$ 16.30
54	5304514299		Motor, Convection				$ 113.36
55	5304514298		Bracket, Convection Mtr				$ 12.29
56	5304514301		Cover, Convection		Appelez-nous	-
57	5304514293		Element, Convection			Immediately	$ 57.11
58	5304514297		Fan Blade, Cooling				$ 11.13
59	5304514294		Fan Blade, Convection				$ 39.56
60	5304514296		Cover, Element		Appelez-nous	-
61	5304514300		Insulation, Convection		Appelez-nous	-
62	5304514295		Bushing, Convection Mtr		Appelez-nous	-
63	5304514292		Gasket, Convection, Silicone		Appelez-nous	-
64	5304514261		Cover, Back		Appelez-nous	-
65	5304514268		Insulation, Assembly, Lh		Appelez-nous	-
66	5304514275		Insulation, Assembly, Rh		Appelez-nous	-
67	5304514244		Insulation, Assembly, Upper		Appelez-nous	-
68	5304518904		Shield Plate, Heat, Bottom		Appelez-nous	-
69	5304514231		Motor, Turntable			Immediately	$ 63.95
70	5304514229		Coupler, Tray			Immediately	$ 65.50
71	5304514228		Tray, Metal				$ 202.92
72	5304514285		Tray, Glass				$ 338.67
73	5304514284		Shelf, Wire				$ 81.69
74	5304514235		Air Guide, Lower 1		Appelez-nous	-
75	5304515320		Air Tunnel, Assembly, Lh		Appelez-nous	-
76	5304514239		Cover, Motor		Appelez-nous	-
77	5304518908		Bracket, Cabinet, Upper		Appelez-nous	-
78	5304514282		Wind Guide, Cavity, Upper		Appelez-nous	-
79	5304514286		Wind Guide, Back Cover		Appelez-nous	-
80	5304515324		Air Guide, Assembly, Lamp				$ 17.72
81	5304515325		Air Guide, Front		Appelez-nous	-
82	5304514269		Air Duct, Lh		Appelez-nous	-
83	5304515323		Air Guide, Assembly, Rh		Appelez-nous	-
84	5304527879		Pc Board, Power			Immediately	$ 390.38
85	5304514242		Holder, Wire		Appelez-nous	-
86	5304515327		Support, Wire				$ 9.50
87	5304514259		Outer Case, Upper		Appelez-nous	-
88	5304514272		Outer Case, Lh		Appelez-nous	-
89	5304514277		Outer Case, Rh		Appelez-nous	-
90	5304514241		Glass, Lamp				$ 14.46
74A	5304514236		Air Guide, Lower 2		Appelez-nous	-
74B	5304514237		Air Guide, Lower 3		Appelez-nous	-
NIA	5304515321		Bracket, Guide Plate		Appelez-nous	-
NIB	5304515322		Bracket, Guide Plate				$ 10.63

    View Diagram in Separate Window       Print Part List
