SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

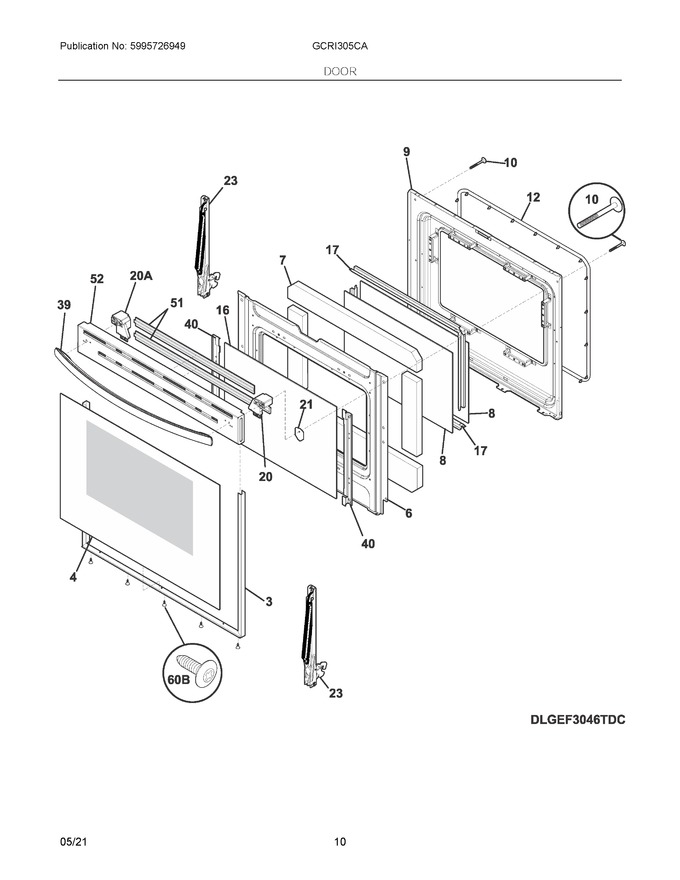

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 58.12
4	316355602		Glass, Door, Black, W/foil   (Replaces: 316355601)				$ 215.62
6	316406328		Shield, Wool				$ 87.21
7	316405600		Insulation, Oven Door				$ 76.55
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	316423721		Liner, Oven Door				$ 168.36
10	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 16.48
12	5304498835		Seal, Oven Door   (Replaces: 316403101)			Immediately	$ 88.74
16	316552801		Glass, Door, Airwash				$ 37.93
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316353004		Spacer, Door, Rh				$ 27.30
21	316533801		Plate, Distribution, Load			Immediately	$ 5.67
23	5304522696		Hinge, Door, Dual Spring			Immediately	$ 76.59
39	5304518030		Handle, Door/drawer, Black Stainless				$ 157.60
40	316552401		Bracket, Airwash Glass, (2)				$ 28.83
51	316355300		Insulation, Door, Top Cap				$ 7.59
52	5304532496		Door Cap, Assembly, Black Stainless, Insul & Spacers   (Replaces: 5304518017)		Appelez-nous	-
20A	316353005		Spacer, Door, Lh				$ 27.30
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
7A	5304518033		Insulation, Door Liner, Top				$ 45.50
NI	316483102		Label, Anti-tip				$ 3.56
NI	5303288572		Screw-handle Mtg		Appelez-nous	-
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316355100		Insulation, Flue/side/door		Appelez-nous	-
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	318165800		Spacer, Glass, Foam				$ 17.72

    View Diagram in Separate Window       Print Part List
