02 - Backguard


03 - Burner


04 - Body


07 - Top/drawer


08 - Door

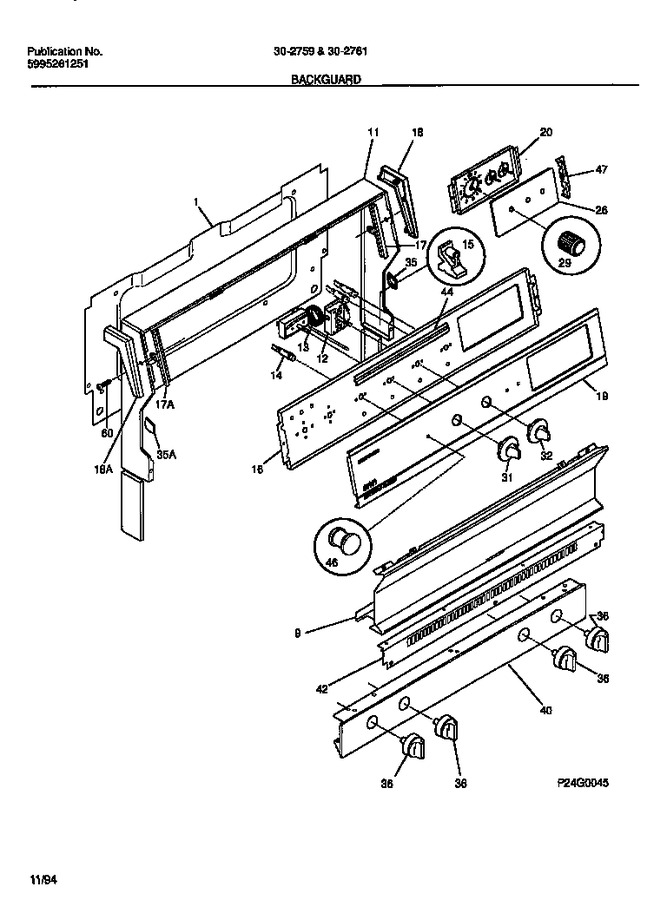

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043502		Trim, Splasher, Almond		Appelez-nous	-
11	3204755		Trim, Wrapper		Appelez-nous	-
12	5303271746		Thermostat-oven				$ 414.28
13	5303212678		Switch Selector		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
14	3201728		Light/lamp, Indicator, Red, Lock, 125, Lock (non-illust		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	3204747		End Cap, Chrome, Rh		Appelez-nous	-
19	3205478		Panel, Control, Metal		Appelez-nous	-
20	3204766		Clock/timer, Analog 3 Stem		Appelez-nous	-
26	3201695		Lens-clock, Glass		Appelez-nous	-
29	316029000		Knob-clock		Appelez-nous	-
31	5303286099		Knob-selector		Appelez-nous	-
32	5303286098		Knob - Thermostat		Appelez-nous	-
35	3203077		End Cap,rh		Appelez-nous	-
36	3205103		Knob, Top Valve, (4)		Appelez-nous	-
40	5303208492		Panel, Manifold		Appelez-nous	-
42	3131241		Trim-vent		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316065800		Lens, Light/lamp, Indicator, Amber		Appelez-nous	-
47	3201700		Retainer, Clock Glass, (2)		Appelez-nous	-
60	5303293427		Screw, 6, 20 X 1/2, 5 Oval Head		Appelez-nous	-
*17280	3204745		Bushing-ctrl Shaft		Appelez-nous	-
*17281	316001422		Harness-wiring, Backguard		Appelez-nous	-
*17282	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*17283	5303272555		Clip-backguard		Appelez-nous	-
*17284	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
17A	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18A	3204746		End Cap, Chrome, Lh		Appelez-nous	-
35A	3203076		End Cap,lh		Appelez-nous	-
