01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

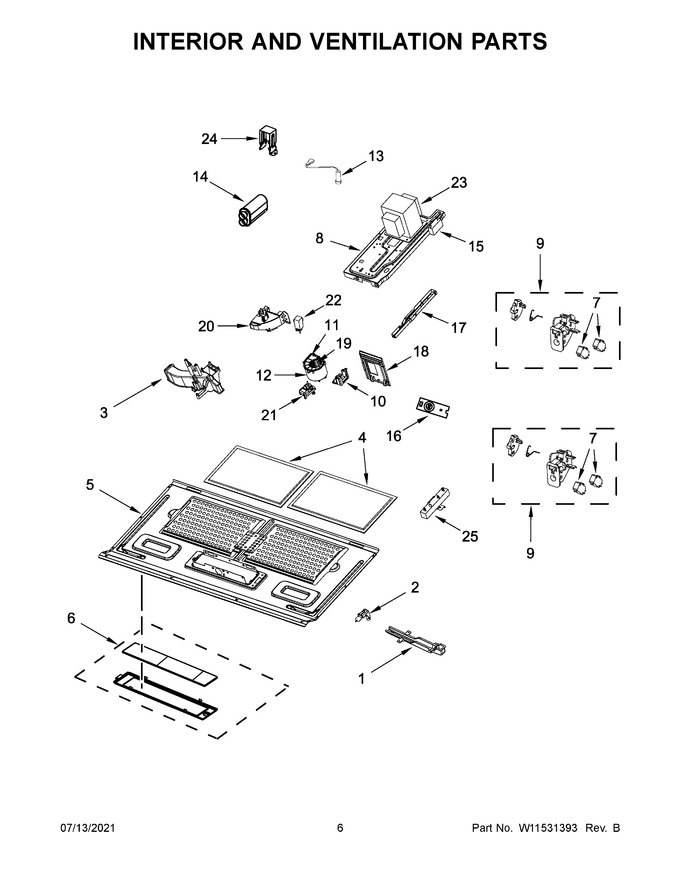

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10570212 | Air Duct, Turntable Motor |
|
- | |||||
| 2 | W10709921 | Lamp, Halogen |
|
Immediately | $ 19.10 | ||||
| 3 | W10758887 | Assembly, Airguide Grille |
|
- | |||||
| 4 | W10535950 | Filter, Grease |
|
Immediately | $ 27.90 | ||||
| 5 | W10571126 | Plate, Bottom |
|
$ 82.10 | |||||
| 6 | W10240330 | Assembly, Lamp Glass And Holder |
|
$ 6.47 | |||||
| 7 | NP | Following Parts Not Illustrated |
|
- | |||||
| 8 | W10908577 | Chassis, Component |
|
- | |||||
| 9 | W11197766 | Assembly, Interlock (includes Switches) (Replaces: W11187757) |
|
Immediately | $ 33.12 | ||||
| 10 | W10533480 | Holder, Ntc |
|
$ 21.23 | |||||
| 11 | W10533502 | Cover, Cooling Fan |
|
$ 22.71 | |||||
| 12 | W10533501 | Housing, Cooling Fan |
|
Immediately | $ 27.22 | ||||
| 13 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 29.88 | ||||
| 14 | W10561770 | Capacitor, High Voltage |
|
$ 65.13 | |||||
| 15 | W11405831 | Capacitor, Motor |
|
$ 38.03 | |||||
| 16 | W10536989 | Thermistor, Pcba |
|
Immediately | $ 33.16 | ||||
| 17 | W10540718 | Bracket, Cavity |
|
$ 27.95 | |||||
| 18 | W10533107 | Deflector, Air |
|
- | |||||
| 19 | W10533503 | Wheel, Cooling Fan |
|
$ 29.26 | |||||
| 20 | W10533104 | Air Guide, Magnetron |
|
- | |||||
| 21 | W11230994 | Motor, Cooling Fan (Replaces: W11169357) |
|
Immediately | $ 172.40 | ||||
| 22 | W10458325 | Actuator |
|
$ 83.50 | |||||
| 23 | W11465624 | Transformer, High Voltage |
|
$ 165.42 | |||||
| 24 | W10633730 | Bracket, Capacitor |
|
- | |||||
| 25 | W11259891 | Resistor, Cement |
|
- |
