01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker


06 - Shelves & Accessories


07 - Unit Compartment & System

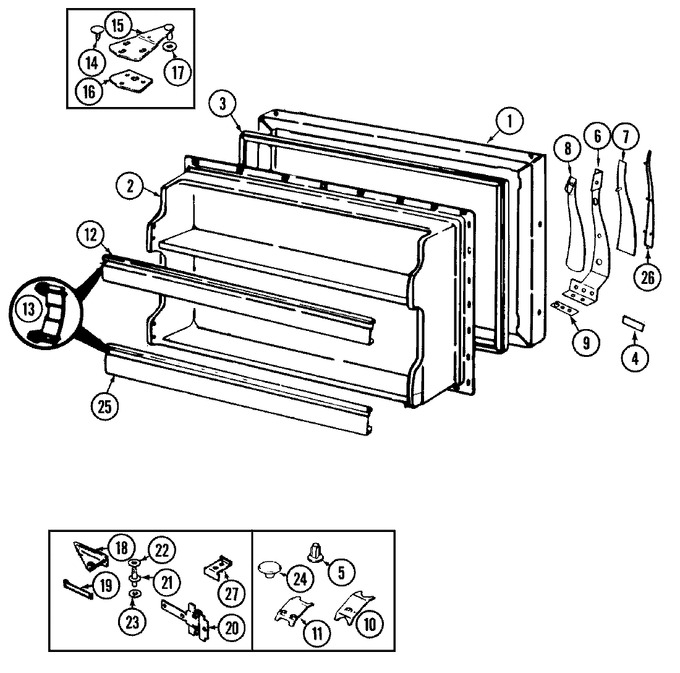

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-1-WW		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
2	69470-1		Liner, Frz. Door	10	Appelez-nous	-
3	70025-5		Gasket, Frz. Door (wht)	10			$ 142.50
4	60603-29		Insert, Nameplate	10	Appelez-nous	-
5	55782-10		Plug Button, Hdle & Door Stop	10	Appelez-nous	-
6	69300-3		Handle, Door	10	Appelez-nous	-
6	65275-57		Screw	10	Appelez-nous	-
7	60602-8		Insert, Handle	10	Appelez-nous	-
8	65275-53		Screw	10	Appelez-nous	-
8	60445-3		Insert, Handle (back)	10	Appelez-nous	-
9	69301-1		Shim, Handle	10	Appelez-nous	-
10	56209-3		Clip, Stop Screw	10	Appelez-nous	-
11	60123-2		Clip, Stop Screw	10	Appelez-nous	-
12	WP61003045		Shelf Trim   (Replaces: 68832-4)	10			$ 129.55
13	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	10			$ 9.39
14	56144-13		Plug Button, Upper Hinge (wht)	10	Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
15	53709-20		Hinge, Upper	10	Appelez-nous	-
16	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
17	54233-1		Washer	10			$ 7.71
18	69514-2		Hinge, Center	10	Appelez-nous	-
18	65275-62		Screw	10	Appelez-nous	-
19	69515-1		Shim, Center Hinge	10	Appelez-nous	-
20	69419-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
21	69517-2		Pin, Center Hinge	10	Appelez-nous	-
22	67483-6		Washer	10	Appelez-nous	-
23	54233-1		Washer	10			$ 7.71
24	67634-2		Plug Button, Hinge Cup (wht)	10	Appelez-nous	-
25	WP61003045		Trim, Shelf   (Replaces: 68832-7)	10			$ 129.55
27	68988-1		Stop, Door	10	Appelez-nous	-
27	65275-48		Screw	10	Appelez-nous	-
