SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

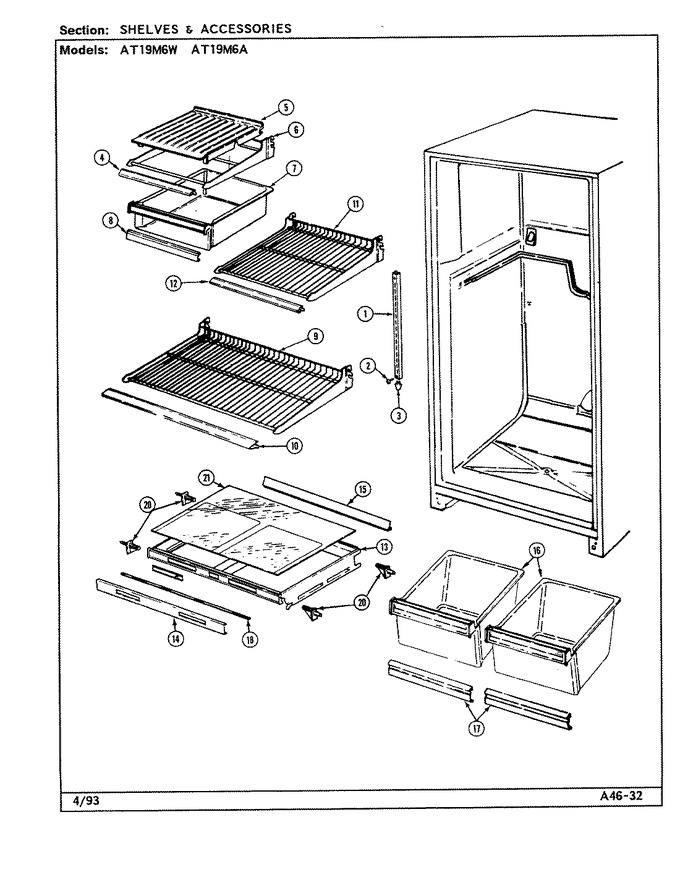

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	60340-1		End Cap, Center Rail		Appelez-nous	-
4	60414-62		Trim		Appelez-nous	-
5	60075-7		Cover, Meat Pan		Appelez-nous	-
6	60416-13		Shelf, Meat		Appelez-nous	-
7	66636-37		Pan, Meat		Appelez-nous	-
8	60132-102		Handle, Meat Keeper		Appelez-nous	-
9	60417-22		Shelf, Full		Appelez-nous	-
10	60414-37		Trim		Appelez-nous	-
11	60417-19		Shelf, Split		Appelez-nous	-
12	60414-62		Trim		Appelez-nous	-
13	68735-1		Shelf, Crisper		Appelez-nous	-
14	68744-2		Trim		Appelez-nous	-
15	68798-1		Trim, Crisper Shelf (rear)		Appelez-nous	-
16	68222-136		Pan, Crisper		Appelez-nous	-
17	60132-106		Handle		Appelez-nous	-
18	68797-1		Seal		Appelez-nous	-
20	68836-1		Stud, Crisper Support		Appelez-nous	-
21	68743-13		Shelf, Crisper		Appelez-nous	-
NI	68742-1		Slide, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
