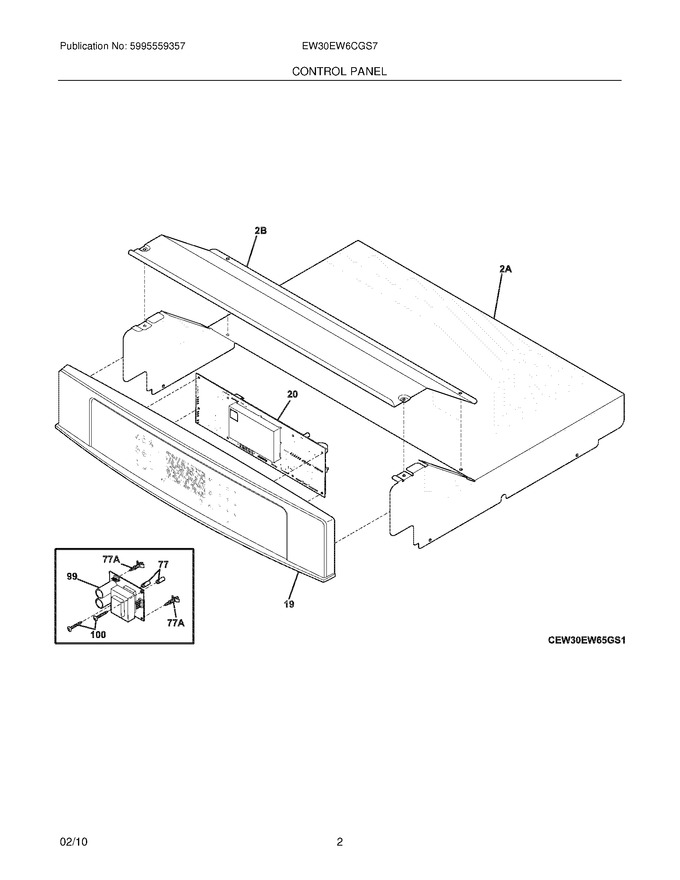

03 - Control Panel
05 - Upper Oven
07 - Lower Oven
09 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 318280436 | Control Panel Assy.,glass ,stainless ,w/membrane |
|
$ 2,439.36 | |||||
| 77 | 316247900 | Spacer,power Board |
|
$ 44.65 | |||||
| 100 | 5304400427 | Screw,6-20 X 1/2 ,(2) |
|
- | |||||
| 2A | 318257300 | Shield,oven Top |
|
$ 89.36 | |||||
| 2B | 318260100 | Cover,box |
|
$ 44.42 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F20 | 316576621 | Clock/timer,electronic ,es630 |
|
Immediately | $ 375.88 | ||||
| F99 | 316535200 | Board,power Supply ,8v ,(2) |
|
$ 408.36 | |||||
| FNI | 318532113 | Harness,wiring ,communication ,13 Connectors |
|
$ 198.70 | |||||
| NI | 131892100 | Screw,control Mtg ,6-32 X .25 ,(5) (Replaces: 316524400) |
|
- | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
