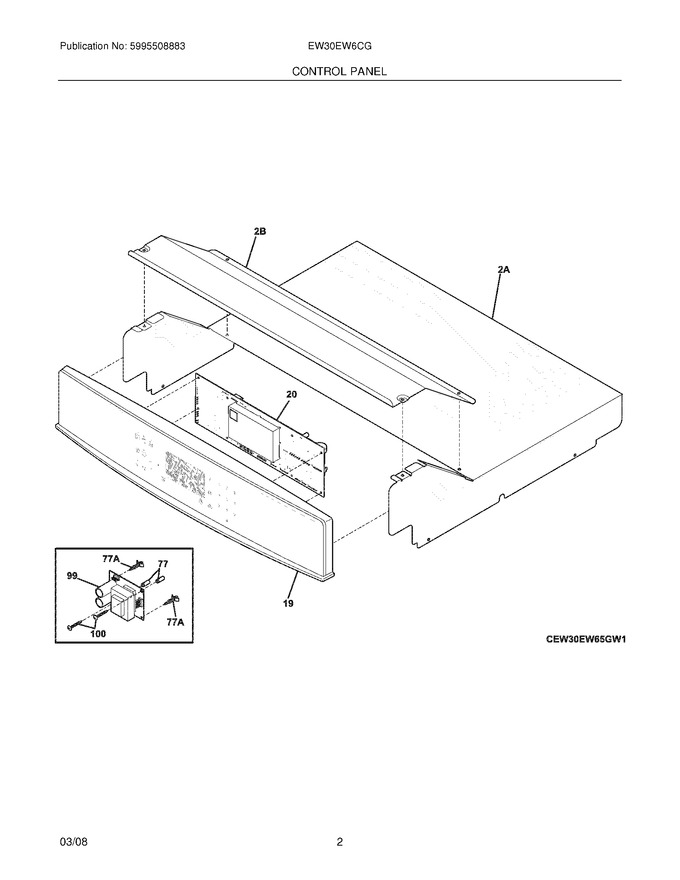

03 - Control Panel
05 - Upper Oven
07 - Lower Oven
09 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 7318280434 | Control Panel Assy.,glass ,black ,w/membrane |
|
- | |||||
| 77 | 7316247900 | Spacer,power Board |
|
- | |||||
| 100 | 75304400427 | Screw,6-20 X 1/2 ,(2) |
|
- | |||||
| 2A | 7318257300 | Shield,oven Top |
|
- | |||||
| 2B | 7318260100 | Cover,box |
|
- | |||||
| 77A | 7316114100 | Spacer,(4) |
|
- | |||||
| F20 | 316576621 | Controller,electronic ,dual Oven ,es610w5 (Replaces: 7316516531) |
|
Immediately | $ 375.88 | ||||
| F99 | 316535200 | Board,power Supply ,8v ,(2) (Replaces: 7316535200) |
|
$ 408.36 | |||||
| FNI | 7318370349 | Wiring Harness,8v Power Board |
|
- | |||||
| NI | 7316524400 | Screw,control Mtg ,6-32 X .25 ,(5) |
|
- | |||||
| NI | 75303211311 | Screw,8 X 0.500 |
|
- |
