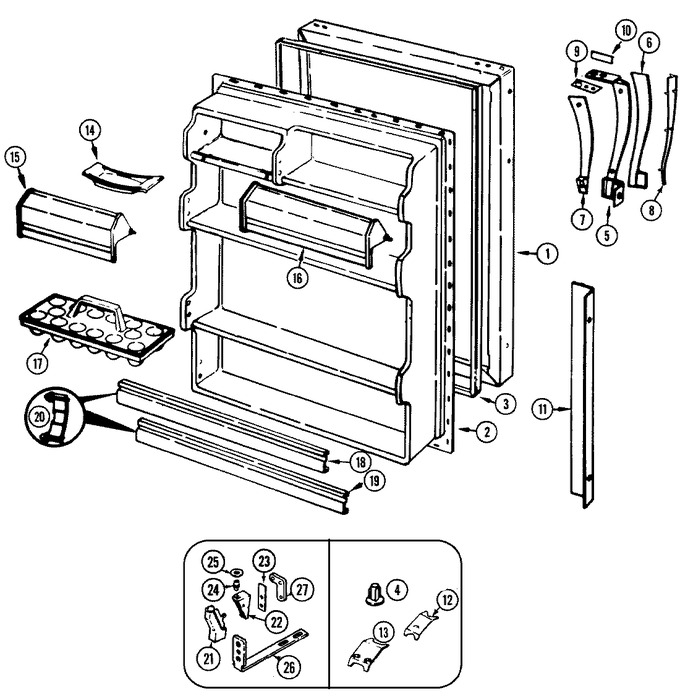

AT19M9A (BOM: DE54A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	72349-1-AM	Panel, F.f. Door (alm)	10	Appelez-nous	-
2	65275-5	Screw	10	Appelez-nous	-
2	69453-1	Liner, F.f. Door	10	Appelez-nous	-
3	70025-6	Gasket, F.f. Door (wht)	10			$ 155.30
4	55782-6	Plug Button (almond)	10	Appelez-nous	-
5	69300-4	Handle, Door----na	10	Appelez-nous	-
5	65275-57	Screw	10	Appelez-nous	-
6	68016-6	Handle Insert, Front	10	Appelez-nous	-
7	60445-4	Insert, Handle (back)	10	Appelez-nous	-
8	68017-3	Insert, Vinyl Clad	10	Appelez-nous	-
8	65275-53	Screw	10	Appelez-nous	-
9	69301-1	Shim, Handle	10	Appelez-nous	-
10	60603-28	Insert, Nameplate	10	Appelez-nous	-
11	60453-32	Trim, F.f. Door (alm)	10	Appelez-nous	-
12	56209-3	Clip, Stop Screw	10	Appelez-nous	-
13	60123-2	Clip, Stop Screw	10	Appelez-nous	-
14	29936-2	Tray, Butter	10	Appelez-nous	-
15	66184-365	Door, Dairy	10	Appelez-nous	-
16	66184-366	Door, Dairy	10	Appelez-nous	-
17	60066-1	Tray, Egg	10	Appelez-nous	-
18	WP61003045	Shelf Trim (Replaces: 68832-21)	10			$ 129.55
18	WP61003045	Trim, Shelf (Replaces: 68832-92)	10			$ 129.55
19	WP61003045	Trim, Shelf (Replaces: 68832-93)	10			$ 129.55
20	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)	10			$ 9.39
21	68978-1	Cover, Lower Hinge (blk)	10	Appelez-nous	-
22	65275-51	Screw, Lower Hinge	10	Appelez-nous	-
22	69516-2	Hinge, Lower (blk)	10	Appelez-nous	-
23	69510-1	Shim, Lower Hinge	10	Appelez-nous	-
24	69845-1	Pin, Lower Hinge	10			$ 44.55
25	67483-3	Washer, Lower Hinge (Replaces: 67483-2)	10		Immediately	$ 45.86
26	65275-48	Screw	10	Appelez-nous	-
26	65275-59	Screw	10	Appelez-nous	-
26	69256-2	Stop, Door	10	Appelez-nous	-
26	69511-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
26	69794-1	Retainer, Bottle	10	Appelez-nous	-
27	67874-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
