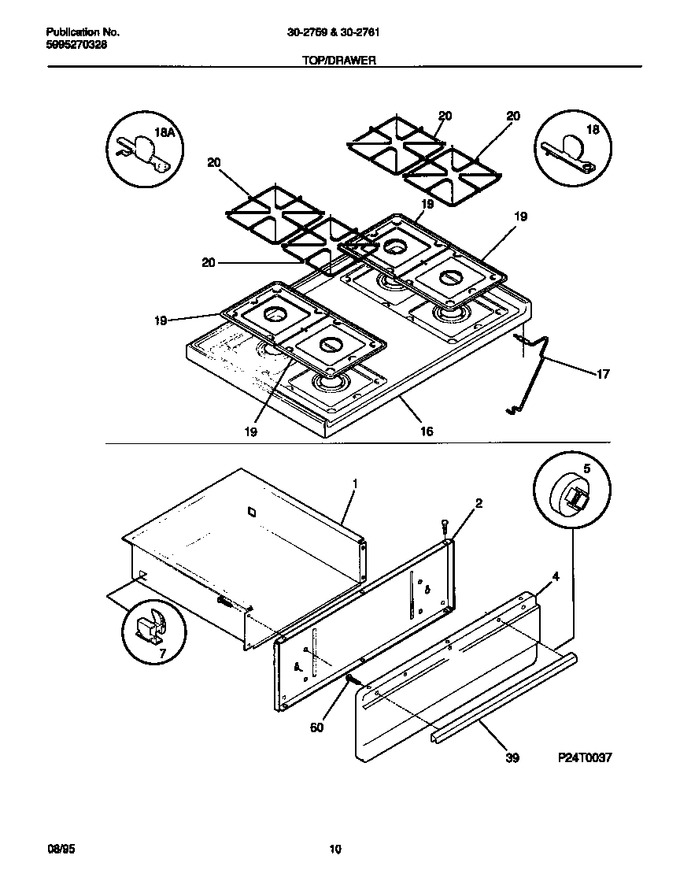

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	3131455		Main Top, Almond		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	316011403		Pan-burner, (4)				$ 54.81
20	5303272852		Grate, (4)				$ 171.05
39	5303280334		Handle-drawer/door, Brushed Chrome		Appelez-nous	-
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*17655	3131903		Bumper				$ 55.36
*17656	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*17657	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
4A	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
