SELECT A DIAGRAM

01 - Cover

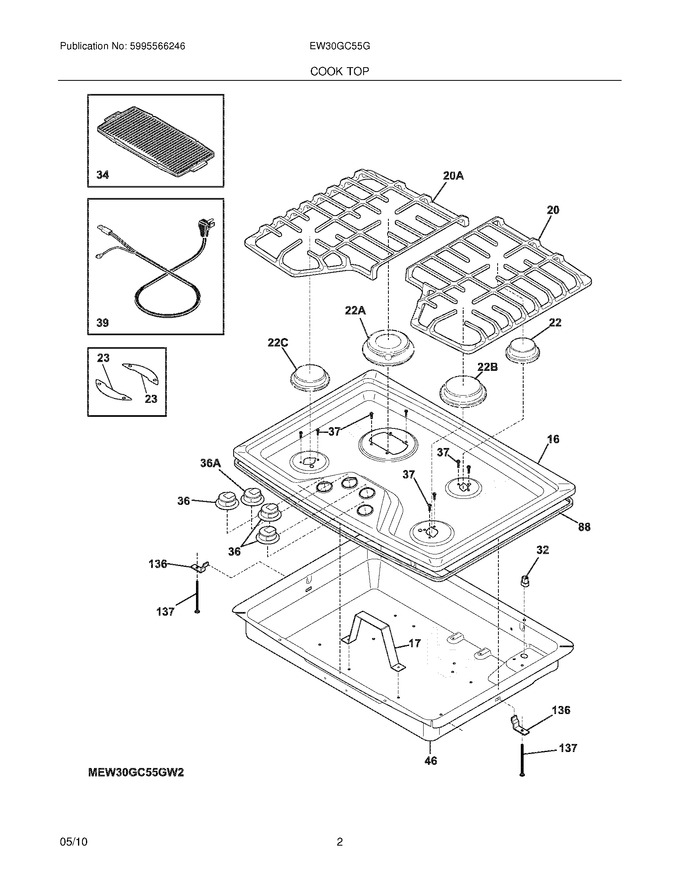

03 - Cook Top


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318379022		Maintop,black ,w/graphics		Appelez-nous	-
17	318406301		Bracket,retainer		Appelez-nous	-
20	318391408		Grate,top Burner ,black ,rh   (Replaces: 318391403)				$ 277.12
22	316548600		Cap,burner ,5k ,black				$ 87.70
23	318406901		Plate,decorative ,stainless ,(2)		Appelez-nous	-
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
34	318251608		Griddleoptional Access0ry				$ 191.73
36	318905201		Knob,burner ,black ,(3)				$ 125.60
37	5303308450		Screw,8 X 0.375 ,(10)		Appelez-nous	-
39	318144006		Cord,service		Appelez-nous	-
46	318278905		Box,burner		Appelez-nous	-
88	318280120		Gasket,cooktop ,93``				$ 138.29
136	318264301		Support,box ,(2)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
20A	318391503		Grate,top Burner ,black ,lh				$ 137.40
22A	316511502		Cap,burner ,18k ,black				$ 248.45
22B	316548800		Cap,burner ,14k ,black				$ 131.46
22C	316548700		Cap,burner ,9.5k ,black ,(2)				$ 134.23
36A	318905204		Knob,burner ,black ,dual				$ 115.45
NI	5303323171		Tape,aluminum ,2``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
