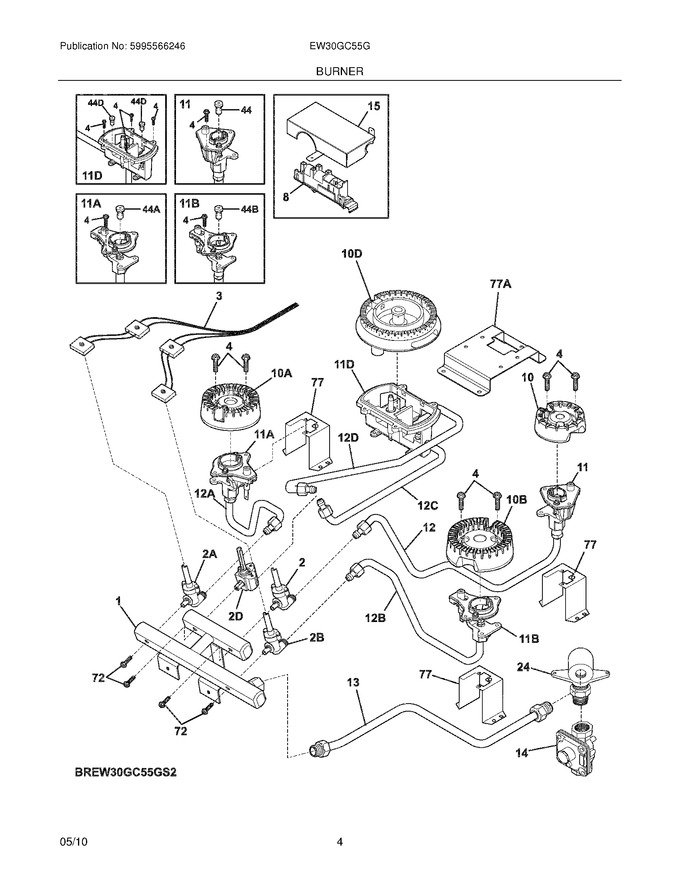

03 - Cook Top
05 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 316240600 | Screw,hex Wash ,6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 12 | 318385813 | Tubing,top Burner ,5k ,right Rear |
|
- | |||||
| 15 | 318024208 | Deflector,spark Module |
|
- | |||||
| 24 | 318054010 | Elbow,fitting |
|
$ 172.23 | |||||
| 72 | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 77 | 318920303 | Bracket,burner Mtg ,(4) |
|
- | |||||
| 12A | 318385812 | Tubing,top Burner ,9.5k ,left Front |
|
- | |||||
| 12B | 318385814 | Tubing,top Burner ,14k ,right Front |
|
- | |||||
| 12C | 318385811 | Tubing,top Burner ,18k ,left Rear |
|
- | |||||
| 12D | 318385810 | Tubing,top Burner ,18k ,left Rear |
|
- | |||||
| 77A | 318384104 | Bracket,burner ,dual |
|
- | |||||
| F1 | 318379200 | Manifold Pipe |
|
- | |||||
| F10 | 316438200 | Burner,sealed ,5k |
|
Immediately | $ 56.70 | ||||
| F10A | 316558300 | Burner,sealed ,9.5k |
|
Immediately | $ 52.45 | ||||
| F10B | 316438600 | Burner,sealed ,14k |
|
Immediately | $ 79.80 | ||||
| F10D | 316525401 | Burner,sealed ,dual ,18k |
|
$ 187.54 | |||||
| F11 | 316540800 | Ignitor/orifice Assy.,top Burner ,5k ,w/holder |
|
$ 11.20 | |||||
| F11A | 316540700 | Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder |
|
$ 11.15 | |||||
| F11B | 316543204 | Ignitor/orifice Assy.,top Burner ,front |
|
$ 12.33 | |||||
| F11D | 316525103 | Ignitor/orifice Assy.,top Burner ,18k ,w/holder |
|
$ 219.39 | |||||
| F13 | 318383410 | Pipe,manifold Inlet |
|
- | |||||
| F14 | 318122707 | Regulator,pressure |
|
$ 121.19 | |||||
| F2 | 318387400 | Valve,top Burner ,5k |
|
$ 174.43 | |||||
| F2A | 318387401 | Valve,top Burner ,9.5k |
|
$ 166.56 | |||||
| F2B | 318387402 | Valve,top Burner ,14k |
|
$ 182.86 | |||||
| F2D | 316574901 | Valve,top Burner ,18k |
|
$ 89.51 | |||||
| F3 | 318232619 | Wiring Harness,w/igntr Switch |
|
$ 117.44 | |||||
| F44 | 316527504 | Orifice,top Burner ,5k |
|
$ 22.68 | |||||
| F44A | 316527500 | Orifice,top Burner ,9.5k |
|
$ 21.40 | |||||
| F44B | 316527511 | Orifice,top Burner ,14k |
|
$ 19.85 | |||||
| F44D | 316523512 | Orifice,top Burner ,18k |
|
- | |||||
| F8 | 5304505695 | Module,spark (Replaces: 316135702) |
|
Immediately | $ 68.16 | ||||
| FNI | 318199779 | Wiring Harness,ignitor |
|
$ 129.10 | |||||
| FNI | 318127445 | Lp Conversion Kit |
|
$ 142.43 | |||||
| NI | 5303323140 | Screw,ground ,10-32 X 0.375 |
|
- | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 08011955 | Screw,10-24 X 0.375 ,square Drive |
|
Immediately | $ 9.36 | ||||
| NI | 5303323137 | Screw,8-32 X 1/4 (Replaces: 5303305528) |
|
$ 11.88 | |||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(4) |
|
- |
