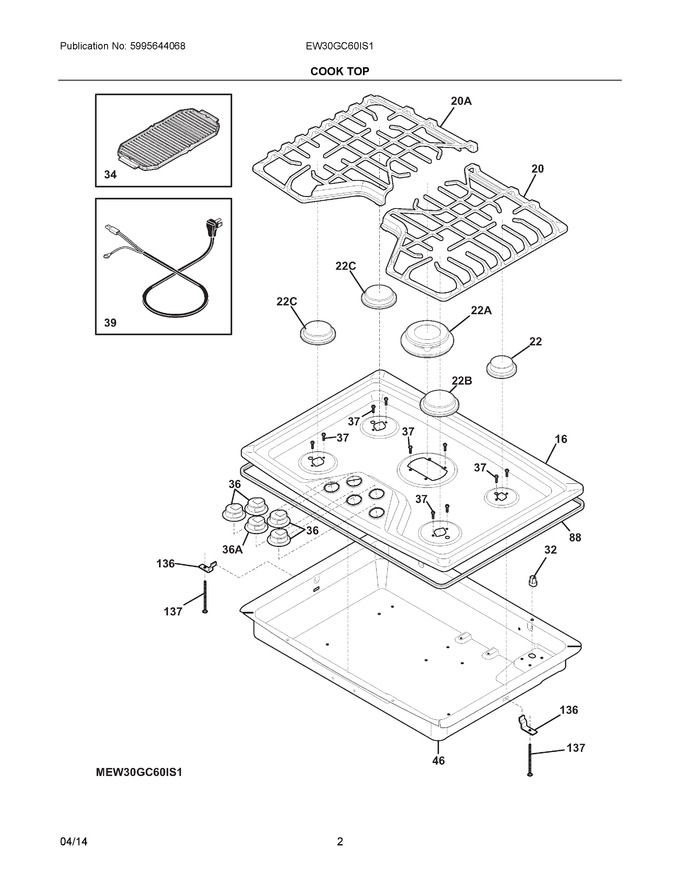

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318379015		Maintop, Stainless, W/graphics		Appelez-nous	-
20	318391404		Grate, Top Burner, Black, Rh				$ 263.03
22	316548600		Cap, Burner, 5k, Black				$ 87.70
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
34	318251615		Griddle, 30" Cooktop Optional Accessory				$ 256.58
36	318569900		Knob, Top Valve, Black, Single, (4)				$ 115.82
37	5303323137		Screw, 8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
39	318144006		Cord, Service		Appelez-nous	-
46	318278909		Box, Burner		Appelez-nous	-
88	318280120		Gasket, Cooktop, 93				$ 138.29
136	318264301		Support, Box, (2)				$ 42.95
137	5303285443		Screw, Lock Bracket, 10-24 X 2.00		Appelez-nous	-
20A	318391504		Grate, Top Burner, Black, Lh		Appelez-nous	-
22A	316511502		Cap, Burner, 18k, Black				$ 248.45
22B	316558400		Cap, Burner, 12k, Black		Appelez-nous	-
22C	316548700		Cap, Burner, 9.5k, Black, (2)				$ 134.23
36A	318569901		Knob, Top Valve, Black, Dual				$ 105.58
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	5304535377		Tape, Aluminum, 3" Wide   (Replaces: 5303323168)				$ 31.36
NI	134178901		Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
