SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker


06 - Shelves & Accessories


07 - Unit Compartment & System

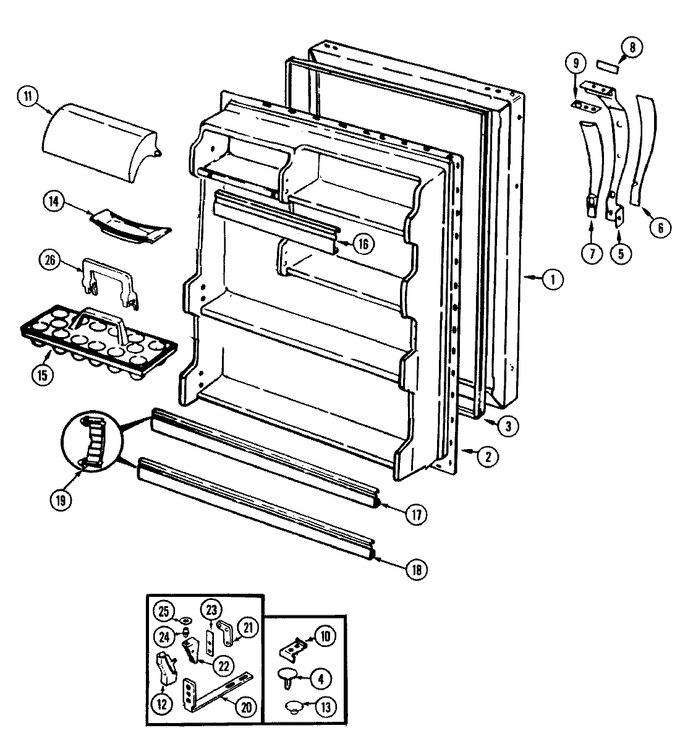

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-2-AM		Panel, F.f. Door (alm)	10	Appelez-nous	-
2	69454-1		Liner, F.f. Door	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
3	70025-6		Gasket, F.f. Door (wht)	10			$ 155.30
4	69480-4		Plug Button (alm)	10	Appelez-nous	-
5	65275-57		Screw	10	Appelez-nous	-
5	69300-4		Handle, Door----na	10	Appelez-nous	-
6	60602-9		Insert, Handle	10	Appelez-nous	-
7	60445-4		Insert, Handle (back)	10	Appelez-nous	-
8	60603-28		Insert, Nameplate	10	Appelez-nous	-
8	65275-53		Screw	10	Appelez-nous	-
9	69301-1		Shim, Handle	10	Appelez-nous	-
10	65275-48		Screw	10	Appelez-nous	-
10	69256-2		Stop, Door	10	Appelez-nous	-
11	69058-2		Door, Dairy	10	Appelez-nous	-
12	68978-1		Cover, Lower Hinge (blk)	10	Appelez-nous	-
13	67634-3		Plug Button, Hinge Cup (alm)	10	Appelez-nous	-
14	29936-2		Tray, Butter	10	Appelez-nous	-
15	60066-1		Tray, Egg	10	Appelez-nous	-
16	WP61003045		Trim, Shelf   (Replaces: 68832-92)	10			$ 129.55
17	WP61003045		Trim, Shelf   (Replaces: 68832-93)	10			$ 129.55
18	WP61003045		Shelf Trim   (Replaces: 68832-21)	10			$ 129.55
19	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	10			$ 9.39
20	69511-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
20	65275-66		Screw (no.10 X 1/2``)	10	Appelez-nous	-
21	65275-59		Screw	10	Appelez-nous	-
21	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
22	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
22	69516-2		Hinge, Lower (blk)	10	Appelez-nous	-
23	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
24	69845-1		Pin, Lower Hinge	10			$ 44.55
25	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
26	69794-1		Retainer, Bottle	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
