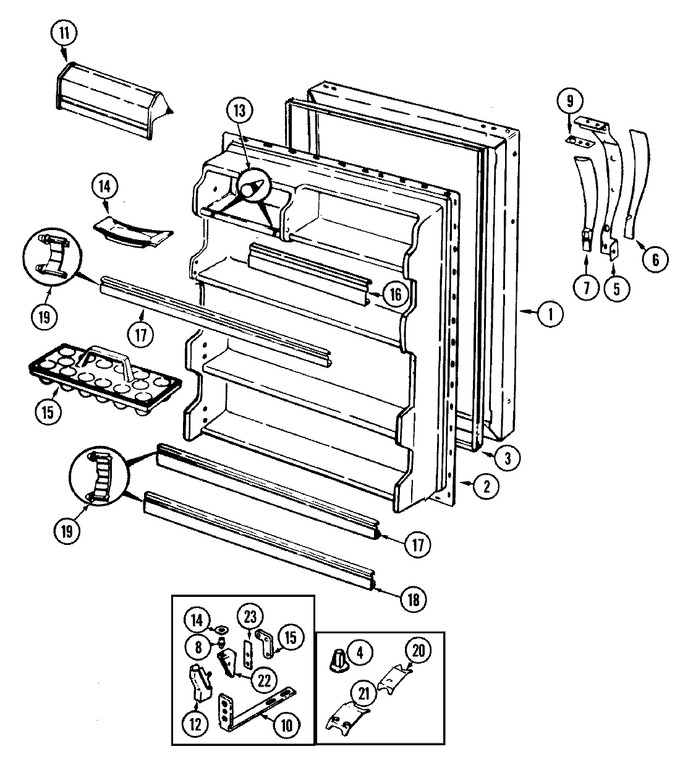

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-2-AM		Panel, F.f. Door (alm)	10	Appelez-nous	-
2	69454-1		Liner, F.f. Door	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
3	70025-6		Gasket, F.f. Door (wht)	10			$ 155.30
4	55782-6		Plug Button (almond)	10	Appelez-nous	-
5	65275-57		Screw	10	Appelez-nous	-
5	69300-4		Handle, Door----na	10	Appelez-nous	-
6	60602-9		Insert, Handle	10	Appelez-nous	-
7	60445-4		Insert, Handle (back)	10	Appelez-nous	-
8	65275-53		Screw	10	Appelez-nous	-
8	69845-1		Pin, Lower Hinge	10			$ 44.55
9	69301-1		Shim, Handle	10	Appelez-nous	-
10	69511-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
10	65275-48		Screw	10	Appelez-nous	-
11	29936-2		Tray, Butter	10	Appelez-nous	-
11	69058-2		Door, Dairy	10	Appelez-nous	-
11	60066-1		Tray, Egg	10	Appelez-nous	-
12	68978-4		Cover, Lower Hinge (wht)	10	Appelez-nous	-
13	28272-6		Bumper, Door	10	Appelez-nous	-
14	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
15	65275-59		Screw	10	Appelez-nous	-
15	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
16	WP61003045		Trim, Shelf   (Replaces: 68832-92)	10			$ 129.55
17	WP61003045		Shelf Trim   (Replaces: 68832-21)	10			$ 129.55
18	WP61003045		Trim, Shelf   (Replaces: 68832-93)	10			$ 129.55
19	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	10			$ 9.39
20	56209-3		Clip, Stop Screw	10	Appelez-nous	-
21	60123-2		Clip, Stop Screw	10	Appelez-nous	-
22	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
22	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
23	69794-1		Retainer, Bottle	10	Appelez-nous	-
23	69031-3		Shim	10	Appelez-nous	-
23	60603-28		Insert, Nameplate	10	Appelez-nous	-
