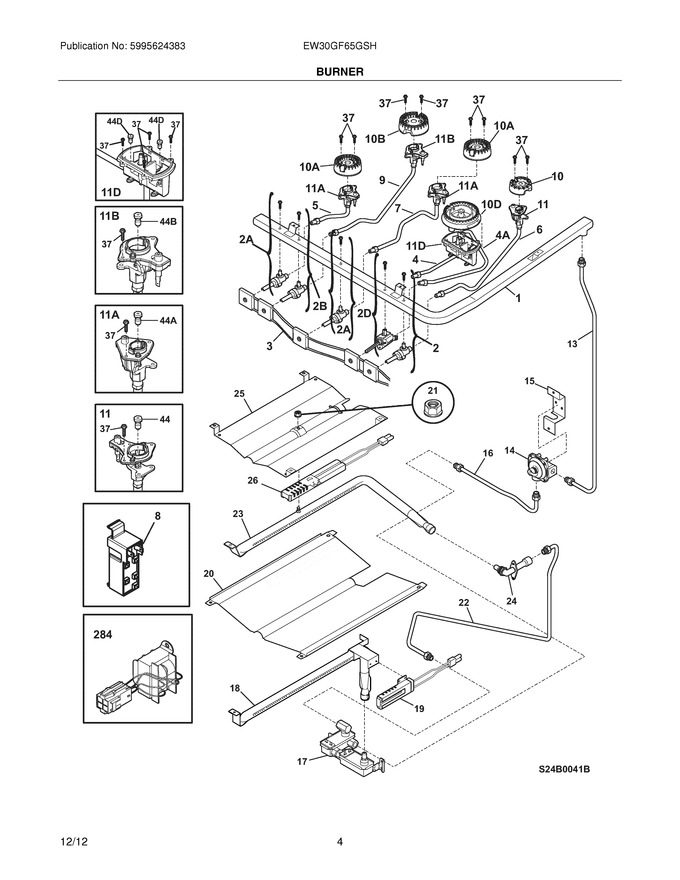

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	316091600		Bracket-regulator				$ 73.56
20	5304519024		Baffle,oven Burner   (Replaces: 316401401)			Immediately	$ 80.39
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
25	316401301		Baffle,broil Burner				$ 173.57
37	316540900		Screw,burner ,head Mtg ,(8)			Immediately	$ 15.17
44	316527504		Orifice,top Burner ,5k				$ 22.68
284	316536100		Transformer			Immediately	$ 210.83
44D	316523508		Orifice,top Burner ,18k				$ 13.23
F1	316505200		Manifold		Appelez-nous	-
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10D	316525401		Burner,sealed ,dual ,18k				$ 187.54
F11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11A	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F11B	316543204		Ignitor/orifice Assy.,top Burner ,14k				$ 12.33
F11D	316525100		Ignitor/orifice Assy.,top Burner ,18k ,w/holder		Appelez-nous	-
F13	316545700		Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings				$ 148.58
F14	5304521339		Regulator,pressure   (Replaces: 316416700)			Immediately	$ 105.42
F16	5304507348		Tube-valve To Rgltr,3/8   (Replaces: 316431000)			Immediately	$ 47.03
F17	316404901		Valve,safety				$ 365.72
F18	316404400		Burner,oven				$ 109.10
F19	5304506545		Ignitor,broil Burner   (Replaces: 316489404)			Immediately	$ 94.21
F2	316520700		Valve,burner ,5k				$ 126.87
F22	5304507768		Tube-valve To Mixer   (Replaces: 316537100)				$ 50.06
F23	316404304		Burner,broiler				$ 84.39
F24	5304516894		Elbow,mixer   (Replaces: 316409700)				$ 87.21
F26	316489403		Ignitor,bake Burner			Immediately	$ 113.15
F2A	316520701		Valve,burner ,9.5k				$ 131.84
F2B	316520703		Valve,burner ,14.2k				$ 146.01
F2D	316574901		Valve,top Burner ,18k				$ 89.51
F3	316518201		Harness Assembly,ignitor ,w/switches				$ 204.03
F4	316509000		Tube,burner ,right Front				$ 95.34
F44A	316527500		Orifice,top Burner ,9.5k				$ 21.40
F44B	316527511		Orifice,top Burner ,14k				$ 19.85
F4A	316509100		Tube,burner ,right Front				$ 91.40
F5	316509300		Tube,burner ,rf & Lf ,(2)		Appelez-nous	-
F6	316509200		Tube,burner ,rr		Appelez-nous	-
F7	316509400		Tube,burner ,center				$ 117.28
F8	5304508269		Module,spark   (Replaces: 316262400)			Immediately	$ 105.46
F9	316526600		Tube,burner ,left Rear				$ 107.69
FNI	316526900		Harness,ignitor				$ 70.88
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316443201		Bracket-support		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
NI	316021132		Screw,8-18 X 11/16 ,black ,(3)				$ 12.89
NI	316401500		Cover,broil Ignitor				$ 12.89
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	316434900		Shield,valve ,bridge Burner				$ 11.55
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
