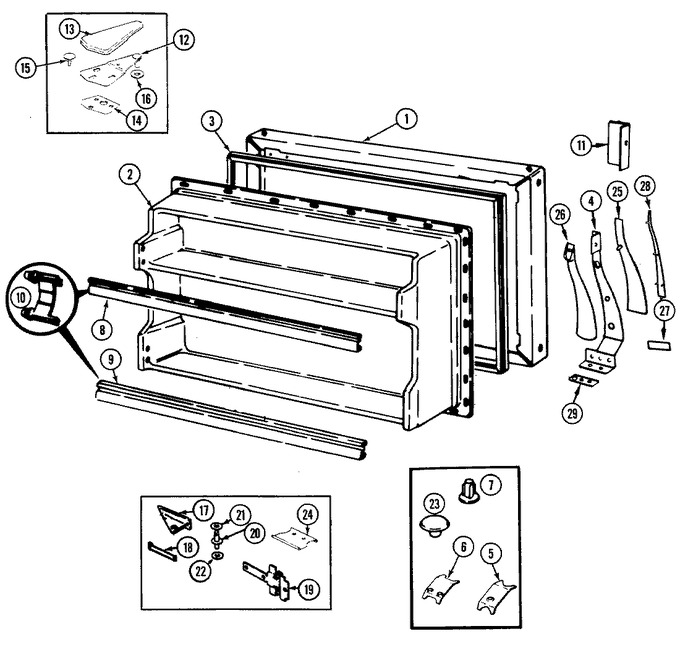

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-2-WW		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	69474-1		Liner, Frz. Door	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
3	70025-7		Gasket, Door	10	Appelez-nous	-
4	65275-57		Screw	10	Appelez-nous	-
4	69300-3		Handle, Door	10	Appelez-nous	-
5	56209-3		Clip, Stop Screw	10	Appelez-nous	-
6	60123-2		Clip, Stop Screw	10	Appelez-nous	-
7	55782-10		Plug Button, Hdle & Door Stop	10	Appelez-nous	-
8	WP61003045		Trim, Frz Dr Shelf   (Replaces: 68375-13)	10			$ 129.55
9	WP61003045		Trim, Door Shelf   (Replaces: 68375-24)	10			$ 129.55
10	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	10			$ 9.39
11	60453-45		Trim, Frz. Door (wht)	10	Appelez-nous	-
12	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
13	70121-4		Cover, Upper Hinge (wht)	10	Appelez-nous	-
14	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
15	56144-13		Plug Button, Upper Hinge (wht)	10	Appelez-nous	-
16	54233-1		Washer	10			$ 7.71
17	69514-2		Hinge, Center	10	Appelez-nous	-
17	65275-62		Screw	10	Appelez-nous	-
18	69515-1		Shim, Center Hinge	10	Appelez-nous	-
19	69419-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
20	69517-1		Pin, Center Hinge	10	Appelez-nous	-
21	67483-1		Washer, Center Hinge (upper)	10	Appelez-nous	-
22	54233-1		Washer	10			$ 7.71
23	67634-2		Plug Button, Hinge Cup (wht)	10	Appelez-nous	-
24	69256-2		Stop, Door	10	Appelez-nous	-
24	65275-48		Screw	10	Appelez-nous	-
25	68016-3		Handle Insert, Front	10	Appelez-nous	-
26	60445-3		Insert, Handle (back)	10	Appelez-nous	-
27	60603-29		Insert, Nameplate	10	Appelez-nous	-
28	68017-5		Insert, Vinyl Clad	10	Appelez-nous	-
29	65275-53		Screw	10	Appelez-nous	-
29	69835-1		Shim, Handle	10	Appelez-nous	-
