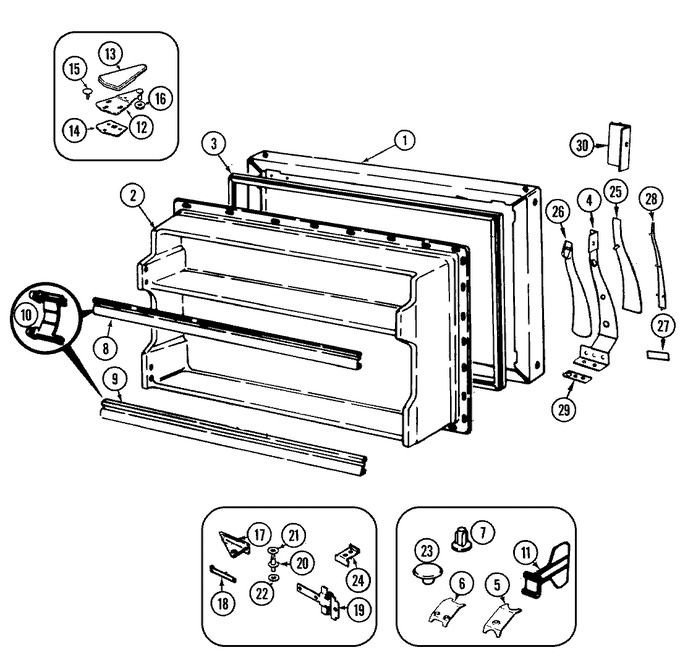

AT23M9A (BOM: DD99A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	72342-105-AM	Panel, Frz. Door (alm)	10	Appelez-nous	-
2	69474-1	Liner, Frz. Door	10	Appelez-nous	-
2	65275-5	Screw	10	Appelez-nous	-
3	70025-7	Gasket, Door	10	Appelez-nous	-
4	69300-3	Handle, Door	10	Appelez-nous	-
4	65275-57	Screw	10	Appelez-nous	-
5	56209-3	Clip, Stop Screw	10	Appelez-nous	-
6	60123-2	Clip, Stop Screw	10	Appelez-nous	-
7	55782-6	Plug Button (almond)	10	Appelez-nous	-
8	WP61003045	Trim, Shelf (Replaces: 68832-61)	10			$ 129.55
9	WP61003045	Trim, Shelf (Replaces: 68832-62)	10			$ 129.55
10	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)	10			$ 9.39
11	64097-11	Organizer, Shelf	10	Appelez-nous	-
12	WP3-24838-048	Screw (Replaces: 65275-52)	10			$ 7.00
12	53709-20	Hinge, Upper	10	Appelez-nous	-
13	70121-3	Cover, Upper Hinge (alm)	10	Appelez-nous	-
14	65031-1	Shim, Upper Hinge	10	Appelez-nous	-
15	56144-9	Plug Button, Hinge Screw (alm)	10	Appelez-nous	-
16	54233-1	Washer	10			$ 7.71
17	65275-55	Screw	10	Appelez-nous	-
17	69514-2	Hinge, Center	10	Appelez-nous	-
18	69515-1	Shim, Center Hinge	10	Appelez-nous	-
19	69419-1	Tapping Plate, Center Hinge	10	Appelez-nous	-
20	69517-1	Pin, Center Hinge	10	Appelez-nous	-
21	67483-1	Washer, Center Hinge (upper)	10	Appelez-nous	-
22	54233-1	Washer	10			$ 7.71
23	67634-3	Plug Button, Hinge Cup (alm)	10	Appelez-nous	-
24	65275-48	Screw	10	Appelez-nous	-
24	69256-2	Stop, Door	10	Appelez-nous	-
25	68016-5	Handle Insert, Front	10	Appelez-nous	-
26	60445-4	Insert, Handle (back)	10	Appelez-nous	-
27	60603-27	Insert, Nameplate	10	Appelez-nous	-
28	68017-3	Insert, Vinyl Clad	10	Appelez-nous	-
29	65275-53	Screw	10	Appelez-nous	-
29	68776-1	Shim Handle----na	10	Appelez-nous	-
30	60453-33	Trim, Frz. Door (alm)	10	Appelez-nous	-
