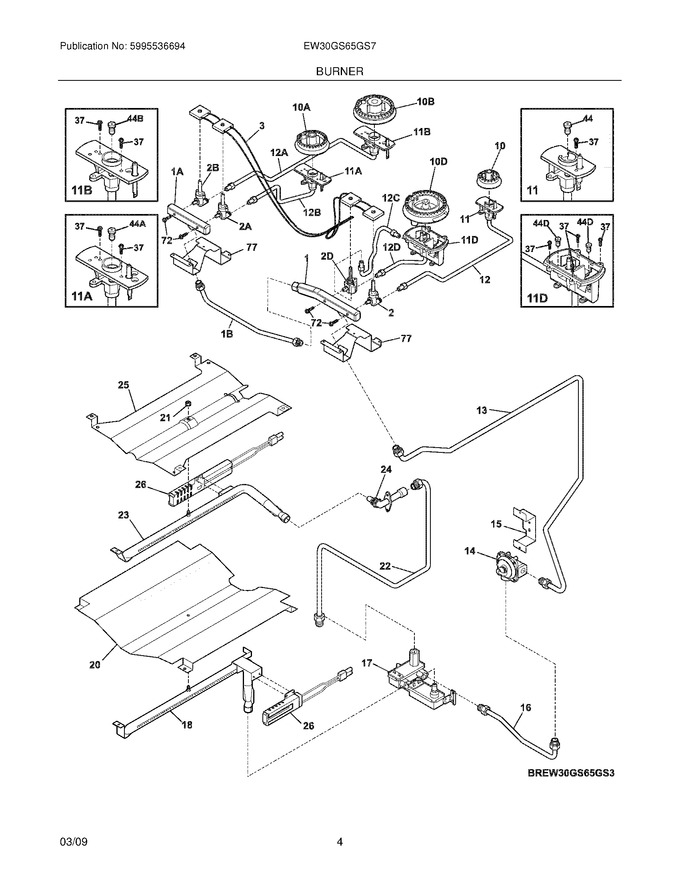

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7318907000		Manifold,pipe ,rh		Appelez-nous	-
12	7318901100		Tubing,5k Burner ,rh Rear		Appelez-nous	-
13	7318902300		Tubing,manifold Supply		Appelez-nous	-
15	7318262810		Bracket,regulator		Appelez-nous	-
16	7318289500		Tube,regulator Valve		Appelez-nous	-
20	7318290400		Baffle,bake Burner		Appelez-nous	-
21	73201885		Nut,keps ,10-24		Appelez-nous	-
22	7318305203		Tube,broil Supply		Appelez-nous	-
23	7318292300		Burner,broil ,14000		Appelez-nous	-
25	7316401301		Baffle,broil Burner		Appelez-nous	-
37	316540900		Screw,ignitor Assy Mt ,6-32 X .62   (Replaces: 7316518100)			Immediately	$ 15.17
44	7316523504		Orifice,top Burner ,5k		Appelez-nous	-
72	7316215600		Screw,valve Mtg. ,1/4 - 20		Appelez-nous	-
77	7318906710		Bracket,manifold ,(2)		Appelez-nous	-
12A	7318901300		Tubing,14k Burner ,lh Rear		Appelez-nous	-
12B	7318901500		Tubing,9.5k Burner ,lh Front		Appelez-nous	-
12C	7318901700		Tubing,18k Burner ,rh Front		Appelez-nous	-
12D	7318901900		Tubing,18k Burner ,rh Front		Appelez-nous	-
1A	7318907200		Manifold,pipe ,lh		Appelez-nous	-
1B	7318902100		Tubing,interconnect		Appelez-nous	-
44A	7316523500		Orifice,top Burner ,9.5k		Appelez-nous	-
44B	7316523506		Orifice,top Burner ,14k		Appelez-nous	-
44D	7316523508		Orifice,top Burner ,18k		Appelez-nous	-
F10	7316510800		Burner,sealed ,5k		Appelez-nous	-
F10A	7316511000		Burner,sealed ,9.5k		Appelez-nous	-
F10B	7316511200		Burner,sealed ,14k		Appelez-nous	-
F10D	7316525400		Burner,sealed ,dual ,18k		Appelez-nous	-
F11	7316524800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder		Appelez-nous	-
F11A	7316524900		Ignitor/orifice Assy.,top Burner ,9.5k ,(2),w/holder		Appelez-nous	-
F11B	7316525000		Ignitor/orifice Assy.,top Burner ,14k ,w/holder		Appelez-nous	-
F11D	7316525100		Ignitor/orifice Assy.,top Burner ,18k ,w/holder		Appelez-nous	-
F14	7316416705		Regulator,pressure		Appelez-nous	-
F17	316404901		Valve,safety   (Replaces: 7316404901)				$ 365.72
F18	7318292200		Burner,oven ,18000		Appelez-nous	-
F2	7318387400		Valve,top Burner ,5k		Appelez-nous	-
F24	7316409703		Elbow,mixer		Appelez-nous	-
F26	7318177710		Ignitor,oven Burner		Appelez-nous	-
F2A	7318387401		Valve,top Burner ,9.5k		Appelez-nous	-
F2B	7318387402		Valve,top Burner ,14k		Appelez-nous	-
F2D	7316496602		Valve,burner ,dual Port		Appelez-nous	-
F3	318232649		Wiring Harness,w/igntr Switch   (Replaces: 7318232649)				$ 109.05
FNI	7318532147		Ground Wire,w/terminal		Appelez-nous	-
FNI	7318186922		Lp Conversion Kit		Appelez-nous	-
FNI	7318199781		Wiring Harness,ignitor		Appelez-nous	-
NI	75303300195		Screw,10-32 X 0.375 ,(2)		Appelez-nous	-
NI	75303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
NI	75303323133		Screw,8-18 X 0.500		Appelez-nous	-
NI	316519700		Screw,truss Head ,8-18 X 0.375   (Replaces: 708016432)				$ 10.02
NI	75303131801		Screw,10 X 3/8		Appelez-nous	-
NI	75303211311		Screw,8 X 0.500		Appelez-nous	-
NI	75303305528		Screw,8-32 X 1/4		Appelez-nous	-
NI	7318268600		Harness,wiring ,valve		Appelez-nous	-
