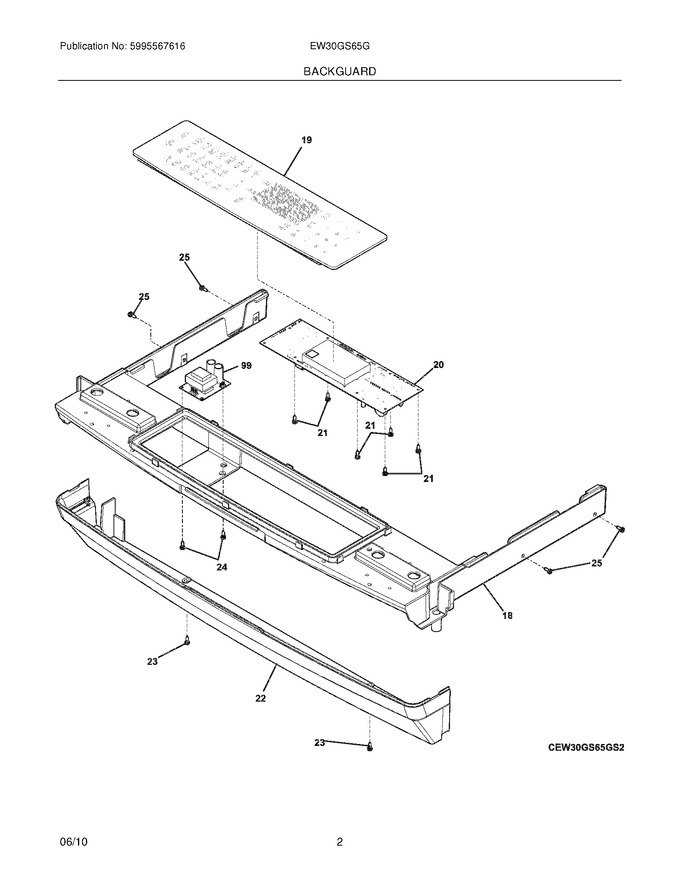

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	318900300		Subframe,control				$ 223.44
21	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
22	318905003		Panel,service ,white				$ 348.02
23	5304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
24	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
25	5303131801		Screw, 10 X 3/8		Appelez-nous	-
F19	318387131		Control Assembly,glass ,black ,w/interface				$ 1,596.15
F20	316576701		Controller,electronic ,es630				$ 393.97
F99	316535200		Board,power Supply ,8v ,(2)				$ 408.36
FNI	318402345		Harness,wiring ,control Panel		Appelez-nous	-
FNI	318384451		Harness,wiring ,power To Timer				$ 43.89

    View Diagram in Separate Window       Print Part List
