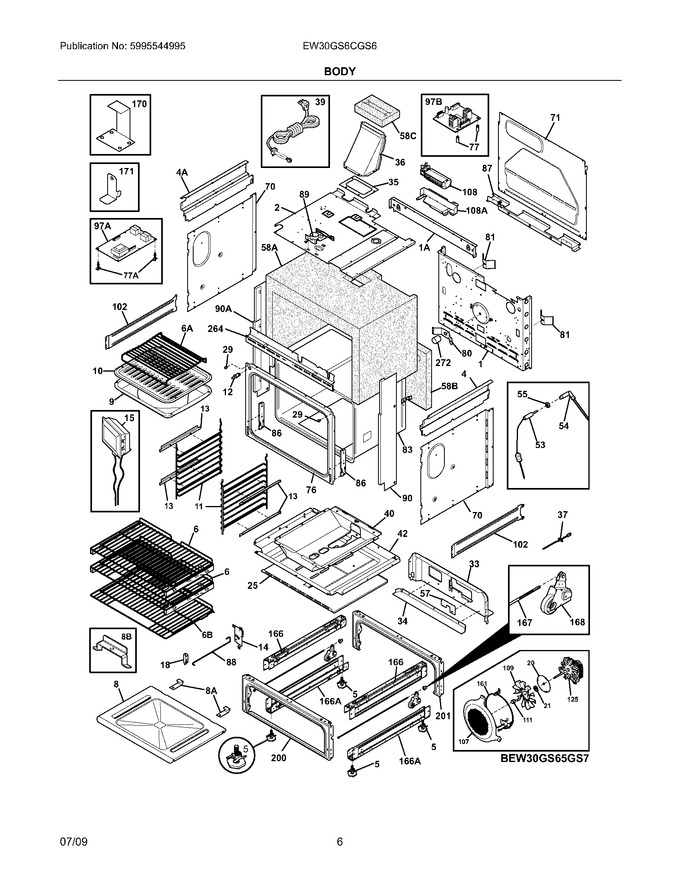

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7318259220		Back,main		Appelez-nous	-
2	7318258922		Shield,insulation ,upper		Appelez-nous	-
4	7318905700		Panel,side ,rh Upper		Appelez-nous	-
5	318175510		Screw,leveling   (Replaces: 7318175508)			Immediately	$ 24.26
6	7318903105		Shelf,oven ,(2)		Appelez-nous	-
8	7318290502		Panel,oven ,bottom		Appelez-nous	-
9	7318138801		Pan,broiler		Appelez-nous	-
10	7318126401		Insert,broiler Pan		Appelez-nous	-
11	7318903300		Rack,oven Shelf ,(2)		Appelez-nous	-
12	808136601		Switch,oven Light ,door Frame   (Replaces: 7316445501)			Immediately	$ 44.04
13	7318603913		Bracket,ladder Mtg. ,(4)		Appelez-nous	-
15	7318241006		Lamp,oven ,(2) ,halogen		Appelez-nous	-
18	7318562300		Bracket,rod		Appelez-nous	-
20	7318389400		Plate,retainer		Appelez-nous	-
21	7318389000		Seal,ring		Appelez-nous	-
25	7318291900		Bracket,shield ,lower		Appelez-nous	-
29	316517600		Spacer,oven Door   (Replaces: 7316517600)				$ 12.05
33	7318287800		Panel,valve Mtg.		Appelez-nous	-
34	7318289400		Panel,valve Filler		Appelez-nous	-
35	7318291300		Seal,flue Cavity		Appelez-nous	-
36	7318288801		Box,flue Assy.		Appelez-nous	-
39	7318144008		Cord,service		Appelez-nous	-
40	7318291800		Box,oven Burner		Appelez-nous	-
42	7318288701		Bracket,body ,middle		Appelez-nous	-
55	316247700		Nut,mounting				$ 18.20
57	7318268300		Cover,burner Opening		Appelez-nous	-
70	7318259102		Shield,insulation ,sides ,(2)		Appelez-nous	-
71	7318260007		Panel,rear Box		Appelez-nous	-
76	7318056236		Front,oven		Appelez-nous	-
77	7316247900		Spacer,power Board		Appelez-nous	-
80	75303320846		Plate,oven Mtg		Appelez-nous	-
81	7318192400		Spring,oven		Appelez-nous	-
83	7318327011		Liner,oven		Appelez-nous	-
86	7316508600		Receptacle,hinge ,(2)		Appelez-nous	-
87	7318260604		Bracket,cable Mtg.		Appelez-nous	-
88	7318376505		Rod,latch		Appelez-nous	-
90	7318905806		Panel,side ,stainless ,rh		Appelez-nous	-
102	7318327500		Panel,reinforcement		Appelez-nous	-
107	7318906601		Cover,fan		Appelez-nous	-
109	318398302		Fan Blade   (Replaces: 7318398300)			Immediately	$ 29.11
111	7318399800		Nut-fan Retainer		Appelez-nous	-
166	7318298400		Bracket,base Support ,(2)		Appelez-nous	-
167	318147811		Screw,lock ,adjusting   (Replaces: 7318147811)				$ 31.19
168	318302400		Wheel & Bracket Assy,adjustable ,(2)   (Replaces: 7318302400)				$ 75.13
170	7318335700		Anti-tip & Accessories		Appelez-nous	-
171	318335200		Bracket,anti-tilt   (Replaces: 7318335200)				$ 31.90
200	7318298221		Frame,drawer ,front		Appelez-nous	-
201	7318298210		Frame,drawer		Appelez-nous	-
264	7318906301		Trim,vent		Appelez-nous	-
272	7318249409		Tube,protector		Appelez-nous	-
1A	7318905600		Back,main ,upper		Appelez-nous	-
4A	7318905701		Panel,side ,lh Upper		Appelez-nous	-
58A	7318386101		Insulation,oven Wrapper		Appelez-nous	-
58B	7318285085		Insulation,oven Back		Appelez-nous	-
58C	7318285097		Insulation,flue		Appelez-nous	-
6A	7318365800		Rack,broiler Pan		Appelez-nous	-
6B	318908006		Shelf,oven   (Replaces: 7318908003)			Immediately	$ 232.91
77A	7316114100		Spacer		Appelez-nous	-
8A	7318367401		Bracket,retainer ,(2)		Appelez-nous	-
8B	7318403200		Bracket,service Panel ,(2)		Appelez-nous	-
90A	318905813		Panel,side ,stainless ,lh   (Replaces: 7318905807)				$ 199.31
F108	318073028		Motor,blower   (Replaces: 7318073028)				$ 271.69
F108	7318251300		Bracket,fan Support		Appelez-nous	-
F125	5304467898		Motor,fan   (Replaces: 7318398200)			Immediately	$ 225.67
F14	318562200		Sensor Assy,w/switch ,and Bracket   (Replaces: 7318562200)				$ 257.99
F161	318255504		Element,convection ,350 W				$ 97.07
F166	7318298403		Bracket,base Support ,lower ,(2)		Appelez-nous	-
F37	316217002		Probe,oven Temp   (Replaces: 7316217002)			Immediately	$ 61.23
F53	5304504202		Probe,meat Temp   (Replaces: 7318601302)			Immediately	$ 106.19
F54	318601206		Receptacle,probe   (Replaces: 7318601206)			Immediately	$ 171.52
F89	318261229		Motor,latch Assy   (Replaces: 7318261215)			Immediately	$ 93.62
F97A	316443917		Board,relay   (Replaces: 7316443917)				$ 363.64
F97B	316519200		Board,variable Speed   (Replaces: 7316519200)			Immediately	$ 256.24
FNI	7318306664		Harness,wiring ,main		Appelez-nous	-
FNI	7318402348		Harness,wiring ,relay Board		Appelez-nous	-
NI	75304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	75304456367		Rivet,ladder Bracket ,(8)		Appelez-nous	-
NI	75304416408		Screw,10-24 X 1.750 ,handle Mtg		Appelez-nous	-
NI	7318165800		Spacer		Appelez-nous	-
NI	318403105		Bracket,bridge ,(2)   (Replaces: 7318403100)				$ 49.62
NI	75303325980		Screw,10-32 X 0.437		Appelez-nous	-
NI	75304461333		Screw,10-32 X 17/32		Appelez-nous	-
NI	75303323129		Screw,8 X 0.750		Appelez-nous	-
NI	75304400192		Retainer,wiring		Appelez-nous	-
NI	73051050		Screw,shoulder		Appelez-nous	-
NI	316519700		Screw,truss Head ,8-18 X 0.375   (Replaces: 708016432)				$ 10.02
NI	75303307980		Screw,8-32 X 0.437 ,(8)		Appelez-nous	-
NI	75303323277		Screw,8-18 X 13/32		Appelez-nous	-
NI	75303324184		Screw,8-18 X 5/16 ,black ,(4)		Appelez-nous	-
NI	75303300265		Screw,8-18 X 1/2 ,silver ,(4)		Appelez-nous	-
NI	75304440988		Screw,10-16 X 3/4		Appelez-nous	-
NI	75304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	75304435874		Plate,covering ,probe		Appelez-nous	-
NI	75303211311		Screw,8 X 0.500		Appelez-nous	-
NI	7318341201		Jumper,electronic ,rack Sensor		Appelez-nous	-
