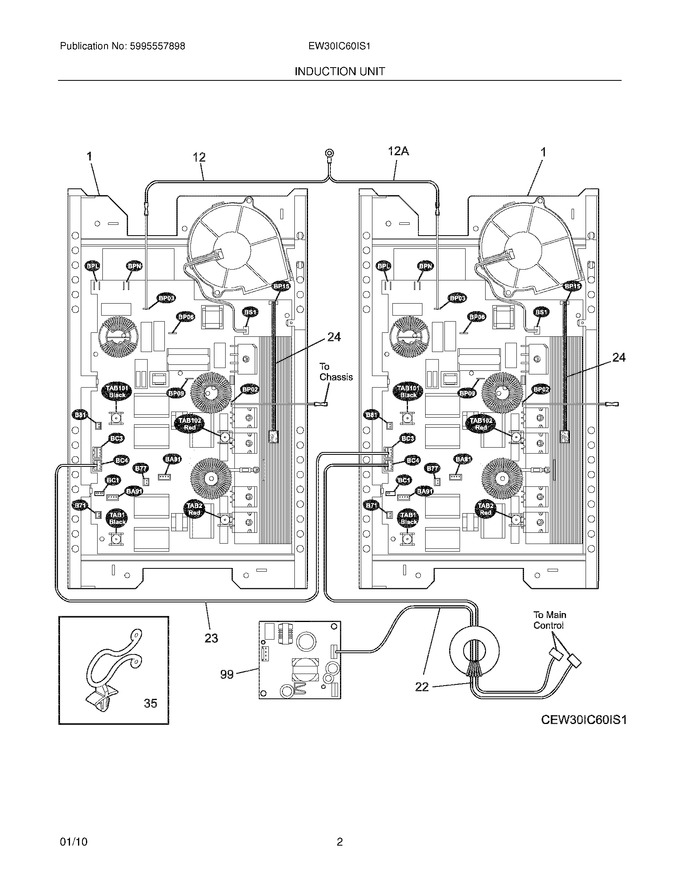

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	216273000		Clip,wire Retainer				$ 22.42
F1	318329631		Housing Assembly,induction ,genrator ,(2),w/electronics				$ 705.92
F12	318402391		Ground Wire,19``		Appelez-nous	-
F12A	318402390		Ground Wire,11``		Appelez-nous	-
F22	318402388		Harness,wiring ,main ,w/magnetic Core				$ 135.11
F23	318402370		Harness,wiring ,generator				$ 38.66
F24	318413300		Cut-out Assembly,thermal ,(2)		Appelez-nous	-
F99	318416300		Board,power Supply   (Replaces: 316576900)				$ 288.89
FNI	318394494		Box & Wires Assy		Appelez-nous	-
FNI	318402377		Harness,wiring ,loop Back ,rear Zone				$ 12.76
FNI	318402372		Harness,wiring ,main Control ,to Front Zones				$ 27.98
FNI	318402320		Harness,wiring ,front Zone ,to Rear Zone				$ 28.93
NI	5304462994		Screw,8-32 X 5/16		Appelez-nous	-
NI	5304475957		Support,power Board ,(2)		Appelez-nous	-
NI	5304475958		Standoff,hex ,power Board ,(2)				$ 9.93
NI	5304468081		Screw,mouinting ,6-32 X 3/8 ,(18)				$ 9.92
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
