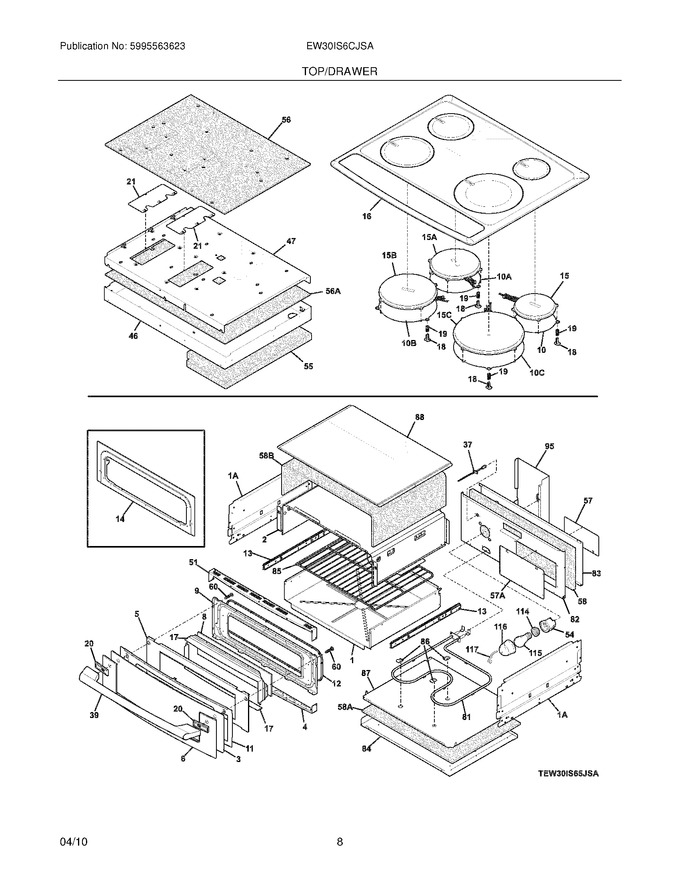

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318384703		Body,drawer				$ 340.51
2	318384601		Wrapper,outer				$ 172.94
3	318904408		Glass,drawer ,black ,outer		Appelez-nous	-
4	318904903		Trim,door ,black ,lower				$ 31.87
5	318391902		Deflector,drawer   (Replaces: 318391901)		Appelez-nous	-
6	318377911		Trim,front ,stainless		Appelez-nous	-
8	318384800		Glass,inner				$ 203.89
9	318384903		Liner,drawer				$ 109.98
10	318330405		Panel,coil Support ,145mm				$ 59.41
11	318385701		Frame,drawer ,outer				$ 343.25
12	318053326		Seal,warmer Drawer				$ 95.68
13	318385600		Glide,drawer ,(2)				$ 111.48
14	318385401		Cover,front ,drawer				$ 154.89
16	318389303		Maintop Assembly,glass/steel ,black/stainless				$ 616.98
17	318385000		Spacer,glass ,(2)				$ 19.80
18	318405000		Pin,guide ,elements ,(6)				$ 19.38
19	318534300		Spring,guide Pin ,(6)				$ 7.09
20	318902902		Spacer,handle ,grey ,(2)				$ 53.76
21	318577900		Shield,emi		Appelez-nous	-
39	241881302		Handle,door ,stainless				$ 226.24
46	318225445		Box,burner		Appelez-nous	-
47	318405105		Panel,mounting				$ 144.24
51	318904703		Trim,door ,black ,upper				$ 57.28
54	5303271606		Housing,oven Light		Appelez-nous	-
55	318407300		Insulation				$ 30.80
56	318563801		Insulation,generator				$ 150.87
57	318386300		Panel,service ,rear				$ 25.89
58	318362120		Insulation,rear		Appelez-nous	-
60	732022890		Screw,10-24 X 0.625   (Replaces: 5303324305)			Immediately	$ 1.84
82	318385302		Panel,back				$ 40.10
83	318385201		Panel,back Insul				$ 43.20
84	318385101		Panel,lower Insul		Appelez-nous	-
85	318908100		Rack,mini Oven				$ 163.72
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318295311		Panel,bottom				$ 71.20
88	318532305		Panel,deflector ,mini Oven   (Replaces: 318532302)		Appelez-nous	-
95	318303811		Shield,wire		Appelez-nous	-
114	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
115	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
116	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
117	5303205904		Clip,lamp Cover ,retainer				$ 7.67
10A	318330406		Panel,coil Support ,180mm		Appelez-nous	-
10B	318330407		Panel,coil Support ,210mm				$ 86.04
10C	318330408		Panel,coil Support ,260mm				$ 136.50
1A	318300002		Panel,warmer Drawer ,side ,(2)				$ 55.42
56A	318330546		Insulation,carrier Panel				$ 94.52
57A	318386400		Panel,service ,front		Appelez-nous	-
58A	318362121		Insulation,bottom		Appelez-nous	-
58B	318362129		Insulation,upper		Appelez-nous	-
F15	318329232		Element,induction Coil ,145mm ,rear				$ 110.19
F15A	318329230		Element,induction Coil ,180mm ,lh Rear				$ 342.04
F15B	318329233		Element,induction Coil ,210mm ,lh Front				$ 308.86
F15C	318329215		Element,induction Coil ,260mm ,rh Front		Appelez-nous	-
F37	316217005		Probe,oven Temp				$ 78.67
F81	318255302		Element,warmer Drawer				$ 138.02
FNI	318083098		Harness,wiring ,mini Oven				$ 43.52
FNI	318004902		Switch,thermal			Immediately	$ 71.44
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	318534402		Gasket,maintop				$ 96.54
NI	134716700		Washer,flat ,(2)   (Replaces: 3201909)				$ 2.12
NI	318534601		Plate,wire Shield		Appelez-nous	-
NI	5303288565		Screw,8-32 X 3/16 ,(8)   (Replaces: 5303323134)				$ 3.12
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	318403105		Bracket,bridge ,(2)   (Replaces: 318403100)				$ 49.62
NI	5304447556		Washer,flat ,(2)		Appelez-nous	-
NI	316459400		Pad,cleaning		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
