SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

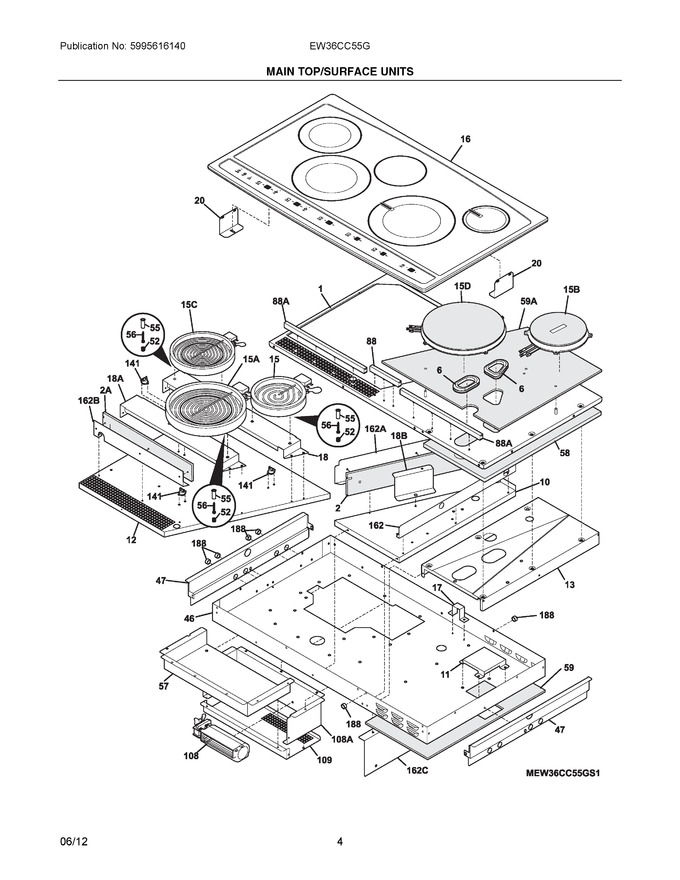

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318329025		Panel, Carrier		Appelez-nous	-
2	318346020		Insulation, Housing, Diagram		Appelez-nous	-
6	318392200		Ring, Gasket, (4)		Appelez-nous	-
10	318381723		Deflector, Heat		Appelez-nous	-
11	318381724		Deflector, Air		Appelez-nous	-
12	318381725		Shield, Heat, Base		Appelez-nous	-
13	318381726		Deflector, Heat		Appelez-nous	-
15	318178110		Element, Surface, 6", 1200 W, (2)   (Replaces: 318198830)			Immediately	$ 122.86
16	318384315		Maintop Assembly, Glass/steel, Black/stainless		Appelez-nous	-
17	318367801		Bracket, Cable		Appelez-nous	-
18	318381820		Bracket, 6" Element		Appelez-nous	-
20	318121902		Bracket, Retainer				$ 47.03
46	318354042		Box, Burner		Appelez-nous	-
47	318345147		Deflector, Air		Appelez-nous	-
52	5303317177		Spring, Element Mtg.				$ 12.74
55	5303317178		Spacer, Element				$ 2.42
56	5304401490		Screw, 6-18 X 1		Appelez-nous	-
57	318381611		Box, Service		Appelez-nous	-
58	318330505		Insulation, Service Panel		Appelez-nous	-
59	318346220		Insualtion, Housing, Lower		Appelez-nous	-
88	318392000		Gasket, Cooktop		Appelez-nous	-
108	318073027		Motor, Fan		Appelez-nous	-
109	318380811		Cover, Blower		Appelez-nous	-
141	318005226		Switch, Thermal Cutout, (3)				$ 37.22
162	318161435		Deflector, Rh		Appelez-nous	-
188	318531702		Spacer, (6)   (Replaces: 318014110)				$ 9.93
108A	318380702		Bracket, Blower		Appelez-nous	-
15A	5304533520		Element, Surface, 6"/9", 3000w, Dual Radiant   (Replaces: 316465001)			Immediately	$ 90.14
15B	318329200		Element, Induction Coil, 145mm, Rear		Appelez-nous	-
15C	318198952		Element, Surface, 750/1800w, Dual Radiant   (Replaces: 318198936)			Immediately	$ 250.90
15D	318329203		Element, Induction Coil, 260mm		Appelez-nous	-
162A	318161436		Deflector, Diagram		Appelez-nous	-
162B	318161450		Deflector, Front		Appelez-nous	-
162C	318161451		Deflector, Front		Appelez-nous	-
18A	318381830		Bracket, 9" Element		Appelez-nous	-
18B	318381900		Bracket, Carrier		Appelez-nous	-
2A	318346040		Insulation, Housing, Interior		Appelez-nous	-
59A	318346231		Insualtion, Housing, Element		Appelez-nous	-
88A	318392010		Gasket, Cooktop, (2)		Appelez-nous	-
NI	5304415832		Screw, 8-18 X 0.406		Appelez-nous	-
NI	5303300265		Screw, 8-18 X 1/2, (4)				$ 15.17
NI	08016432		Screw, Truss Head, 8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw, 8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303288566		Screw, 8 X 1/4, (4)   (Replaces: 5303323130)				$ 2.12
NI	318078582		Box & Wires Assy		Appelez-nous	-
NI	318199488		Harness, Wiring, Main		Appelez-nous	-
NI	318231860		Harness, Wiring, Ground		Appelez-nous	-
NI	318532100		Harness, Wiring		Appelez-nous	-
NI	08008009		Bushing, Side Panel, Nylon, Rh, Snap		Appelez-nous	-
NI	316459400		Pad, Cleaning		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NIA	318052598		Wire Harness, Blower		Appelez-nous	-
NIA	131202300		Screw, 8 X 5/8, (6)   (Replaces: 3131048)			Immediately	$ 13.46
NIA	318231857		Harness, Wiring, Thermostat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
