01 - Cover Sheet
02 - Control Panel

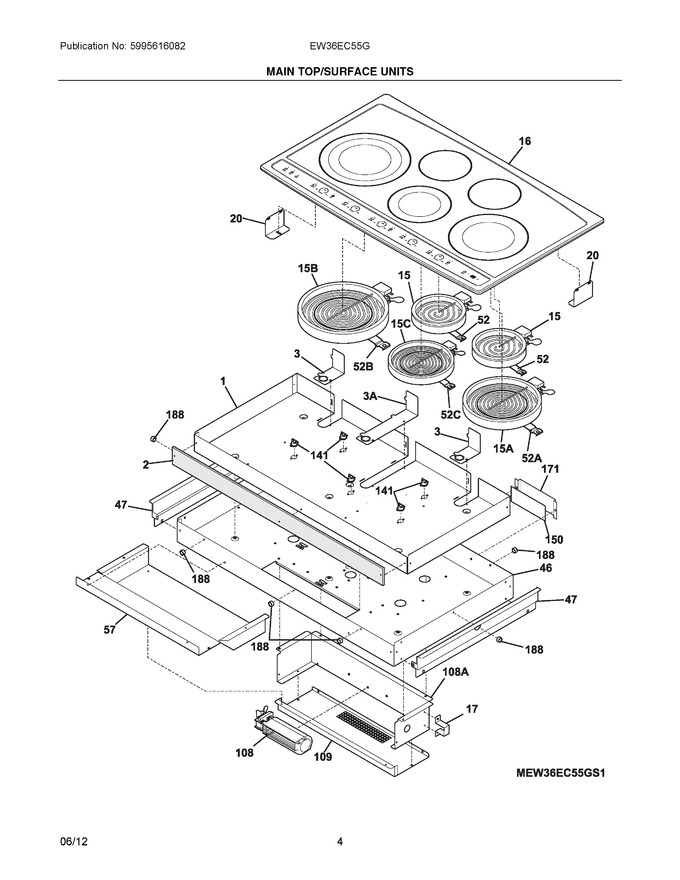

03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318354127 | Shield, Heat |
|
- | |||||
| 2 | 318346016 | Insulation, Front |
|
- | |||||
| 3 | 318371403 | Cover, Deflector |
|
- | |||||
| 15 | 318178110 | Element, Surface, 6", 1200 W, (2) (Replaces: 318198830) |
|
Immediately | $ 122.86 | ||||
| 16 | 318384312 | Maintop Assembly, Glass/steel, Black/stainless, W/touch Control |
|
$ 1,000.65 | |||||
| 17 | 318367801 | Bracket, Cable |
|
- | |||||
| 20 | 318121902 | Bracket, Retainer |
|
$ 47.03 | |||||
| 46 | 318354026 | Box, Burner |
|
- | |||||
| 47 | 318345145 | Deflector, Air |
|
- | |||||
| 52 | 318122006 | Spring, Element Mtg, Small |
|
$ 66.25 | |||||
| 57 | 318381600 | Box, Service |
|
- | |||||
| 108 | 318073027 | Motor, Fan |
|
- | |||||
| 109 | 318380800 | Cover, Blower |
|
- | |||||
| 141 | 318005211 | Switch, Thermal Cutout |
|
- | |||||
| 150 | 318106051 | Insulation, 2 X 5.75, (2) |
|
- | |||||
| 171 | 318124912 | Screen, Thermal |
|
- | |||||
| 188 | 318531702 | Spacer, (6) (Replaces: 318014110) |
|
$ 9.93 | |||||
| 108A | 318380710 | Bracket, Blower |
|
- | |||||
| 15A | 5304533520 | Element, Surface, 6"/9", 3000w, Dual Radiant (Replaces: 316465001) |
|
Immediately | $ 90.14 | ||||
| 15B | 316560402 | Element, Surface, Triple, 6/9/12 (Replaces: 316216702) |
|
$ 296.26 | |||||
| 15C | 318198952 | Element, Surface, 750/1800w, Dual Radiant (Replaces: 318198936) |
|
Immediately | $ 250.90 | ||||
| 3A | 318371404 | Cover, Deflector |
|
- | |||||
| 52A | 318122010 | Spring, Element Mtg, 3000w |
|
$ 62.51 | |||||
| 52B | 318122011 | Spring, Element Mtg, 1200w/1800w |
|
$ 62.14 | |||||
| 52C | 318122008 | Spring, Element Mtg, 1800w/3000w |
|
$ 90.80 | |||||
| NI | 134178901 | Screw, 8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303300265 | Screw, 8-18 X 1/2, (4) |
|
$ 15.17 | |||||
| NI | 5304415832 | Screw, 8-18 X 0.406 |
|
- | |||||
| NI | 5303311306 | Screw, 8-18 X 0.375, (8) |
|
- | |||||
| NI | 318199486 | Harness, Wiring, Main |
|
- | |||||
| NI | 316459400 | Pad, Cleaning |
|
- | |||||
| NI | 318163602 | Cleaner, Stainless Steel |
|
$ 26.51 | |||||
| NI | 5304464884 | Tape, Neopren, 3/4 X 3/32 |
|
- | |||||
| NI | 08016432 | Screw, Truss Head, 8-18 X 0.375 |
|
- | |||||
| NIA | 318231854 | Harness, Wiring, Thermostat |
|
- |
