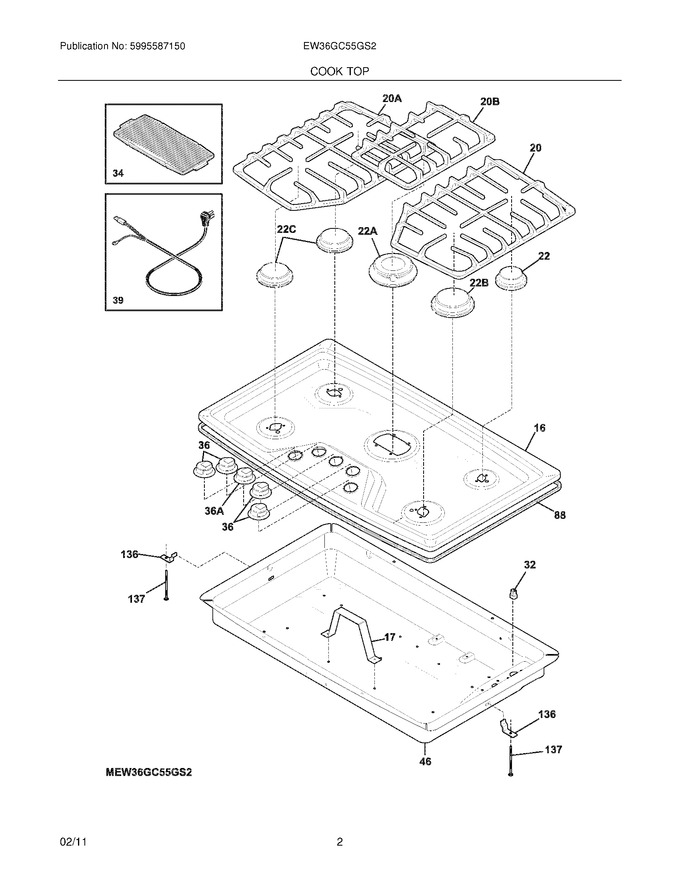

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318379122		Maintop,stainless ,w/graphics				$ 330.68
17	318406301		Bracket,retainer		Appelez-nous	-
20	318391603		Grate,top Burner ,black ,rh		Appelez-nous	-
22	316548600		Cap,burner ,5k ,black				$ 87.70
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
34	318251609		Griddle,36`` Cooktopoptional Access0ry				$ 183.44
36	318905202		Knob,burner ,stainless ,(3)				$ 114.35
39	318144006		Cord,service		Appelez-nous	-
46	318279004		Box,burner		Appelez-nous	-
88	318280121		Gasket,cooktop ,93``				$ 156.92
136	318264301		Support,box ,(2)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
20A	318391703		Grate,top Burner ,black ,lh		Appelez-nous	-
20B	318391803		Grate,top Burner ,black ,center				$ 194.36
22A	316511502		Cap,burner ,18k ,black				$ 248.45
22B	316548800		Cap,burner ,14k ,black				$ 131.46
22C	316548700		Cap,burner ,9.5k ,black ,(2)				$ 134.23
36A	318905205		Knob,burner ,stainless ,dual				$ 127.40
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 5303323168)				$ 31.36
NI	5304459358		Tape,foam ,2`` X 2.8``		Appelez-nous	-
