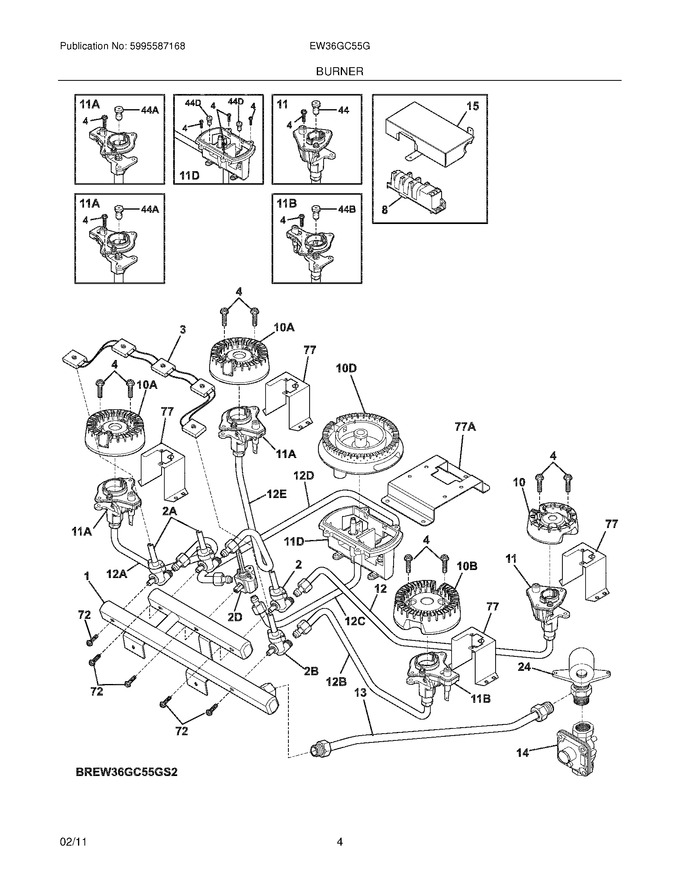

05 - Burner


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
8	808608804		Module,spark   (Replaces: 318079001)			Immediately	$ 76.06
12	318385803		Tubing,top Burner ,5k ,right Rear		Appelez-nous	-
15	318024208		Deflector,spark Module		Appelez-nous	-
24	318054010		Elbow,fitting				$ 172.23
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318920303		Bracket,burner Mtg ,(4)		Appelez-nous	-
12A	318385802		Tubing,top Burner ,9.5k ,left Front				$ 29.53
12B	318385804		Tubing,top Burner ,14k ,right Front		Appelez-nous	-
12C	318385800		Tubing,top Burner ,18k ,center				$ 28.25
12D	318385801		Tubing,top Burner ,18k ,center				$ 29.03
12E	318385805		Tubing,top Burner ,9.5k ,left Rear		Appelez-nous	-
77A	318384104		Bracket,burner ,dual		Appelez-nous	-
F1	318379210		Manifold Pipe		Appelez-nous	-
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10D	316525401		Burner,sealed ,dual ,18k				$ 187.54
F11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11A	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F11B	316543204		Ignitor/orifice Assy.,top Burner ,14k				$ 12.33
F11D	316525103		Ignitor/orifice Assy.,top Burner ,18k ,w/holder				$ 219.39
F13	318383400		Pipe,manifold Inlet		Appelez-nous	-
F14	318122706		Regulator,pressure				$ 114.83
F2	318387400		Valve,top Burner ,5k				$ 174.43
F2A	318387401		Valve,top Burner ,9.5k				$ 166.56
F2B	318387402		Valve,top Burner ,14k				$ 182.86
F2D	316574901		Valve,top Burner ,18k				$ 89.51
F3	318232621		Wiring Harness,w/igntr Switch				$ 93.58
F44	316527504		Orifice,top Burner ,5k				$ 22.68
F44A	316527500		Orifice,top Burner ,9.5k				$ 21.40
F44B	316527511		Orifice,top Burner ,14k				$ 19.85
F44D	316523512		Orifice,top Burner ,18k		Appelez-nous	-
FNI	318127446		Lp Conversion Kit		Appelez-nous	-
FNI	318199780		Wiring Harness,ignitor				$ 100.56
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	318024207		Deflector,quick Connect		Appelez-nous	-
NI	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
