SELECT A DIAGRAM

01 - Cover


03 - Induction Unit

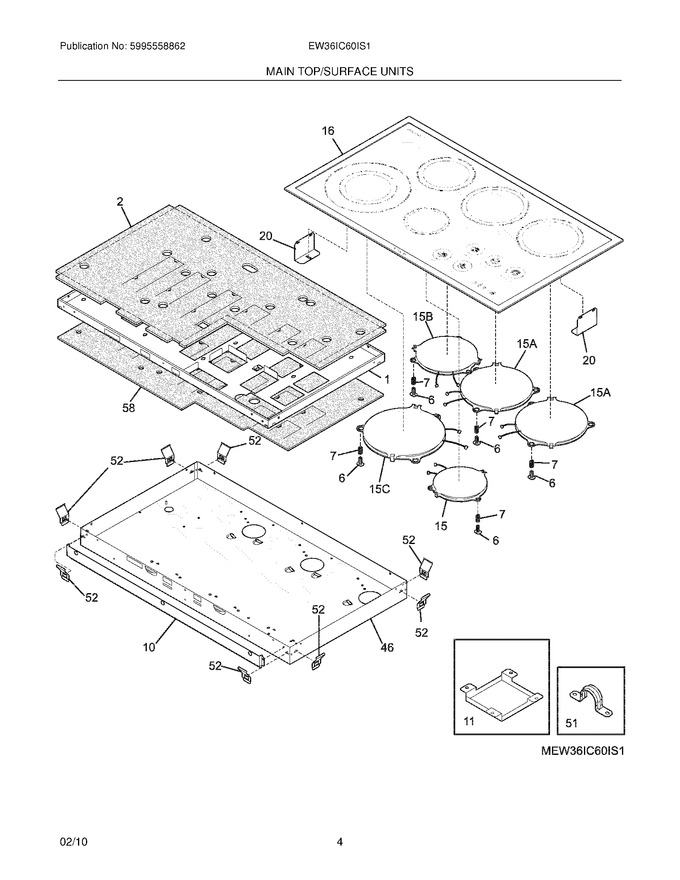

05 - Maintop/surface Units


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318533819		Panel,mounting		Appelez-nous	-
2	318330551		Insulation,carrier Panel		Appelez-nous	-
6	318405000		Pin,guide ,elements ,(15)				$ 19.38
7	318534300		Spring,guide Pin ,(15)				$ 7.09
11	318381731		Deflector,air ,(3)		Appelez-nous	-
20	318121907		Bracket,retainer		Appelez-nous	-
46	318225448		Box,burner		Appelez-nous	-
51	318389600		Bracket,conduit Mtg.				$ 12.76
52	318560900		Spacer,spring ,(8)				$ 14.18
58	318330545		Insulation,service Panel		Appelez-nous	-
F15	318329225		Element Assembly,induction Coil ,140mm ,rh Front				$ 190.68
F15A	318329243		Element Assembly,induction Coil ,210mm ,rh Rear,(2)   (Replaces: 318329228)				$ 312.44
F15B	318329226		Element Assembly,induction Coil ,180mm ,lh Rear		Appelez-nous	-
F15C	318329246		Element Assembly,induction Coil ,270mm ,lh Front   (Replaces: 318329227)				$ 404.46
F16	318282597		Main Top Assy,glass/steel ,black/stainless,w/touch Control				$ 1,172.17
NI	5304462994		Screw,8-32 X 5/16		Appelez-nous	-
NI	5304424462		Foam Tape,1/2`` X 14``			Immediately	$ 69.77
NI	73218-3010		Foam Tape,3/8``   (Replaces: 5303323177)				$ 45.36
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	316459400		Pad,cleaning		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303325170		Nut,keps ,8-32 ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
