SELECT A DIAGRAM

01 - Cover


03 - Backguard

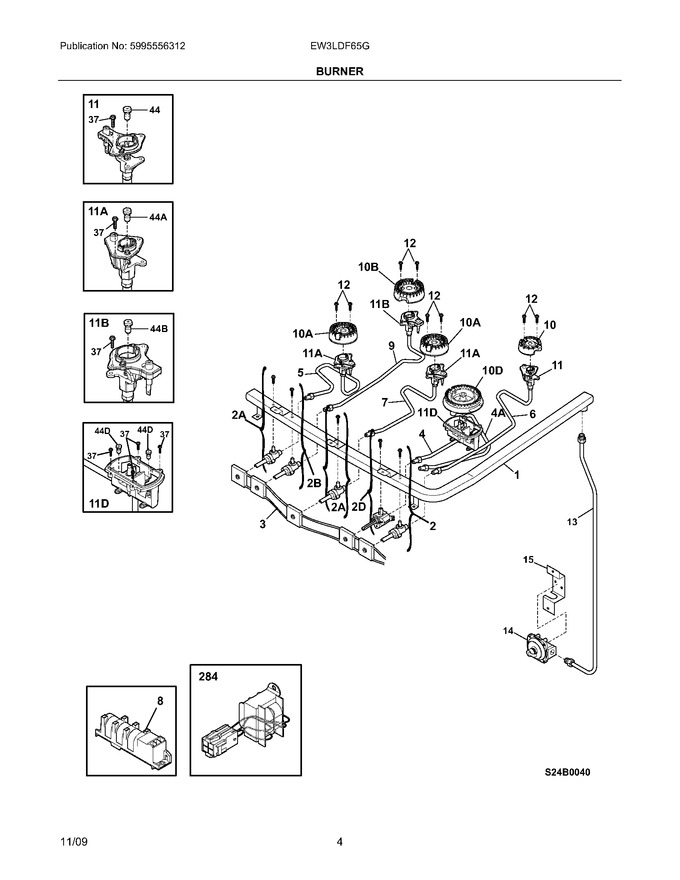

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	808608804		Module,spark   (Replaces: 318079001)			Immediately	$ 76.06
15	316091600		Bracket-regulator				$ 73.56
37	316540900		Screw,burner ,head Mtg ,(8)			Immediately	$ 15.17
284	316536100		Transformer			Immediately	$ 210.83
44B	316527512		Orifice,top Burner ,14k ,lp				$ 17.72
44D	316523510		Orifice,top Burner ,lp ,18k				$ 15.28
F1	316505200		Manifold		Appelez-nous	-
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10D	316525401		Burner,sealed ,dual ,18k				$ 187.54
F11	316540801		Ignitor/orifice Assy.,top Burner ,rear ,5k,w/holder		Appelez-nous	-
F11A	316540701		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F11B	316543205		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F11D	316525101		Ignitor/orifice Assy.,top Burner ,lp ,18k,w/holder				$ 200.87
F13	316545700		Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings				$ 148.58
F14	316541400		Regulator,pressure ,lp		Appelez-nous	-
F2	316536700		Valve,burner ,5k ,lp		Appelez-nous	-
F2A	316536701		Valve,burner ,9.5k ,lp		Appelez-nous	-
F2B	316536702		Valve,burner ,14k ,lp		Appelez-nous	-
F2D	316574903		Valve,top Burner ,18k Dual		Appelez-nous	-
F3	316518201		Harness Assembly,ignitor ,w/switches				$ 204.03
F4	316509000		Tube,burner ,right Front				$ 95.34
F44	316527505		Orifice,top Burner ,5k ,lp				$ 12.89
F44A	316527501		Orifice,top Burner ,9.5k				$ 18.43
F4A	316509100		Tube,burner ,right Front				$ 91.40
F5	316509300		Tube,burner ,rf & Lf ,(2)		Appelez-nous	-
F6	316509200		Tube,burner ,rr		Appelez-nous	-
F7	316509400		Tube,burner ,center				$ 117.28
F9	316526600		Tube,burner ,left Rear				$ 107.69
FNI	316064103		Wire,ground Assembly		Appelez-nous	-
FNI	316526900		Harness,ignitor				$ 70.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316434900		Shield,valve ,bridge Burner				$ 11.55
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	316443200		Bracket-support		Appelez-nous	-
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03

    View Diagram in Separate Window       Print Part List
