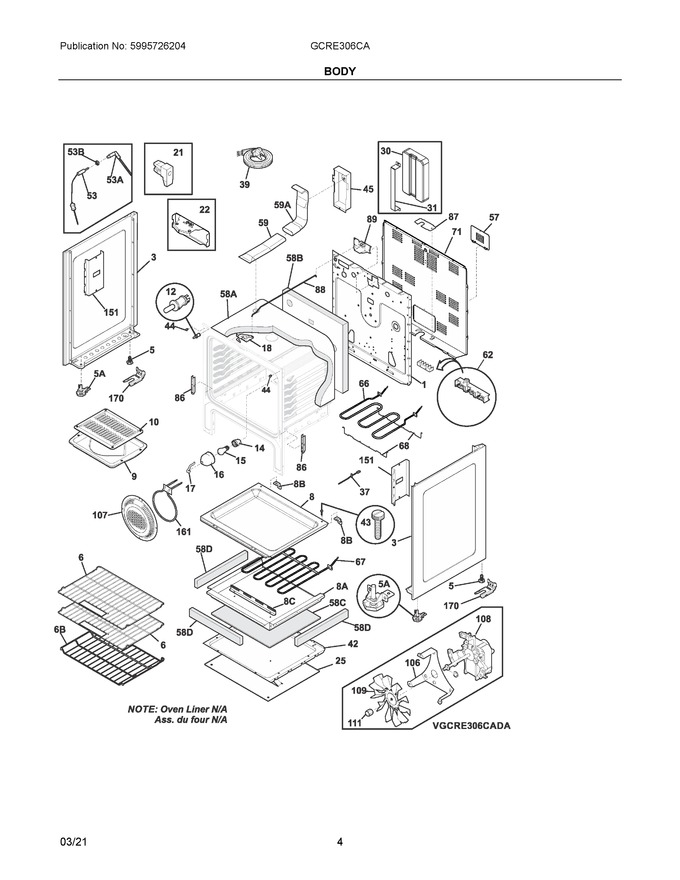

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401806		Panel, Main Back				$ 83.93
3	316400144		Panel, Bodyside, Black, Rh			Immediately	$ 134.69
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316496201		Rack, Oven   (Replaces: 316498003)			Immediately	$ 103.48
8	316505602		Panel, Oven Bottom   (Replaces: 316505601)				$ 158.06
12	316445500		Switch, Oven Light, Door Frame			Immediately	$ 54.74
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light			Immediately	$ 20.48
16	5304524341		Lens, Oven Light, Glass			Immediately	$ 14.18
17	316087500		Retainer, Lens				$ 56.70
18	316405800		Latch Assembly, Oven Door			Immediately	$ 56.74
21	316408000		Clip, Bodyside				$ 18.20
22	316286300		Bracket-bodyside, (2)				$ 17.72
25	316406200		Shield, Heat, Lower				$ 87.97
30	5304527904		Counterweight, Concrete Block				$ 30.47
31	5304527899		Bracket, Concrete Block		Appelez-nous	-
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
39	318113111		Cord, Electric				$ 95.55
42	316400701		Shield, Wool, Lower				$ 162.30
43	316282700		Screw, W/washer, 8-18				$ 9.93
44	316517600		Bumper, Front, Main				$ 12.05
45	316234100		Shield, Wire, Vent Tube				$ 70.16
53	5304503737		Probe, Meat Temp, Black				$ 99.33
57	316283600		Cover, Access				$ 12.50
59	316208401		Vent Tube, Assembly, W/catalyst				$ 194.14
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	316203301		Element, Broil			Immediately	$ 182.39
67	316505500		Element, Bake, 3500w			Immediately	$ 259.25
68	316404002		Support, Element, Broil				$ 8.75
71	316283204		Shield, Rear Wall				$ 56.12
86	316580700		Receptacle, Hinge, (2)   (Replaces: 316508600)			Immediately	$ 30.47
87	316081202		Bracket, Cable Mtg				$ 4.96
88	316203500		Rod, Auto Latch				$ 72.30
89	5304528973		Motor, Latch			Immediately	$ 52.34
106	316404100		Bracket, Motor Mtg.				$ 63.70
107	316026701		Cover, Fan				$ 408.89
108	316256100		Motor-fan			Immediately	$ 211.18
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
151	316404601		Shield, Bodyside				$ 21.27
161	5304518014		Element, Convection, 900w				$ 70.52
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 18.91
3A	316400145		Panel, Bodyside, Black, Lh			Immediately	$ 133.93
53A	316536904		Receptacle, Meat Probe   (Replaces: 5304516901)			Immediately	$ 120.99
53B	316247700		Nut, Mounting				$ 18.20
58A	316406604		Insulation, Oven Wrapper   (Replaces: 316406601)			Immediately	$ 69.77
58B	316406503		Insulation, Oven Back				$ 112.69
58C	316509600		Insulation, Lower Shield		Appelez-nous	-
58D	316509700		Insulation, Oven Bottom				$ 60.25
59A	316208304		Tube, Oven Vent, Upper				$ 80.09
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg			Immediately	$ 15.08
6B	316496205		Rack, Oven				$ 134.67
8A	316505701		Base, Bake Element				$ 244.44
8B	316506000		Bracket, Support, Oven Bottom, (2)				$ 4.55
8C	316505801		Support, Element				$ 25.48
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.05
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304522012		Harness, Main				$ 208.10
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NIA	316536904		Receptacle, Probe			Immediately	$ 120.99
NIA	316247300		Catalyst, Oven Vent, Ceramic				$ 99.23
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIBA	316534100		Washer, Flat, Meat Probe				$ 14.89
NIC	316541700		Template, Anti-tip		Appelez-nous	-
