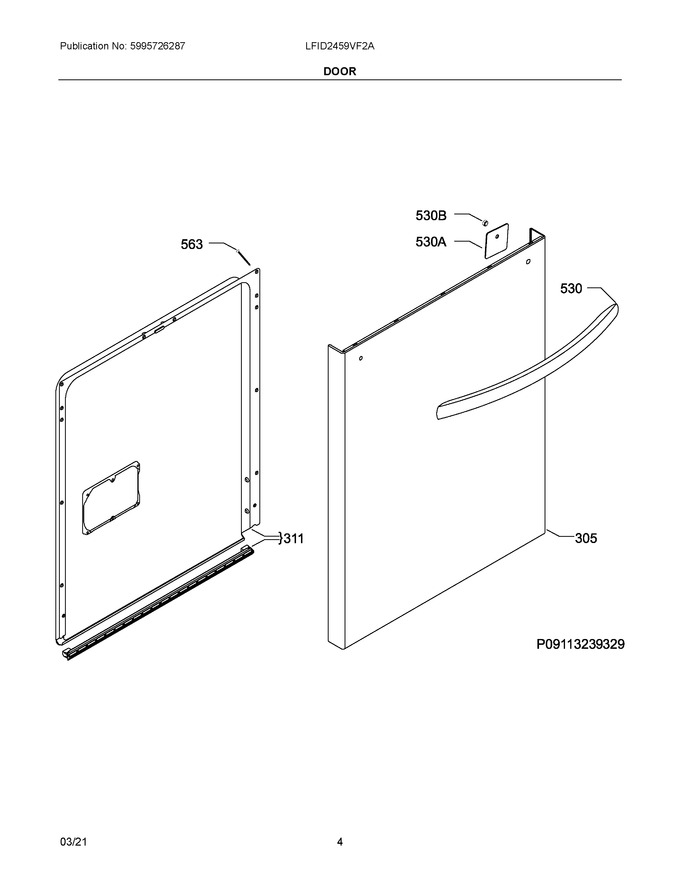

01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Electrical Parts
05 - Wash System
06 - Tub & Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 305 | 8581174951054 | Outer Door, Stainless (Replaces: 117495103) |
|
Immediately | $ 164.80 | ||||
| 311 | A00010702 | Liner, Door |
|
$ 397.30 | |||||
| 530 | 5304510708 | Handle, Door, Stainless (Replaces: A07381701) |
|
Immediately | $ 122.90 | ||||
| 563 | 405538278 | Screw Kit, Door, 3.5x13/19/40, (6/3/5 Pcs), Complete |
|
$ 16.34 | |||||
| 530A | 405530675 | Plate, Door Handle, (2) |
|
- | |||||
| 530B | 405530684 | Nut, Door Handle, (2) |
|
$ 52.88 |
