01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

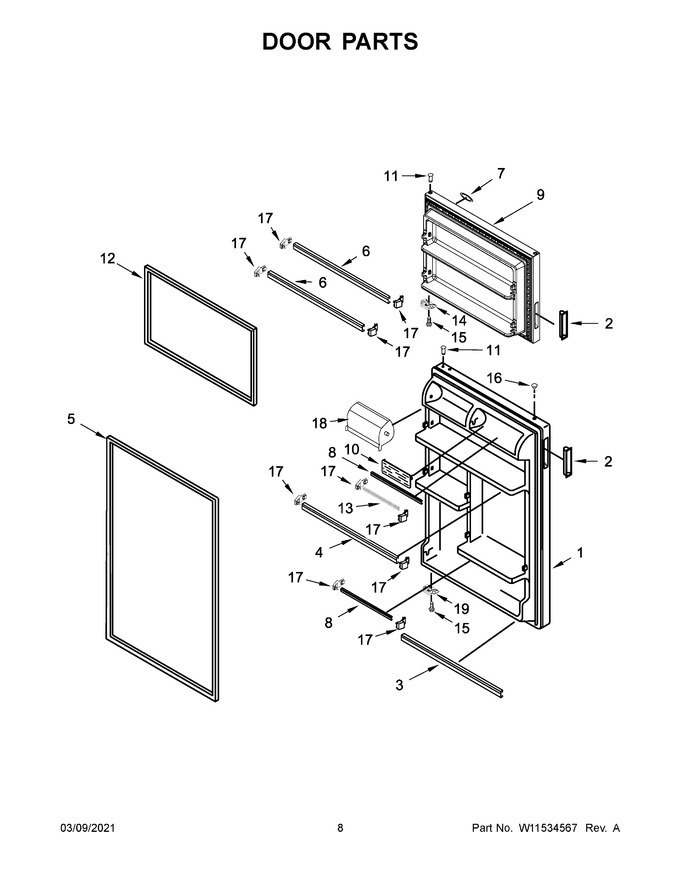

| 1 | LW10680726 | Refrigerator Door (includes Door Gasket & Door Cup) (white) (Replaces: W10680726) |
|
$ 625.50 | |||||
| 2 | W10352523 | Handle, Cup (white) |
|
$ 21.60 | |||||
| 3 | W11126055 | Trim, Door (Replaces: W10719702) |
|
Immediately | $ 109.15 | ||||
| 4 | W11170805 | Trim, Door (Replaces: W10678772) |
|
$ 109.15 | |||||
| 5 | W10838574 | Gasket, Door (white) (Replaces: W10638676) |
|
Immediately | $ 79.44 | ||||
| 6 | W11097831 | Trim, Door (Replaces: W10719703) |
|
$ 10.54 | |||||
| 7 | W11428492 | Badge (white) (Replaces: W11046244) |
|
$ 71.63 | |||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 109.15 | ||||
| 9 | LW10680729 | Freezer Door (includes Door Gasket & Door Cup (white) (Replaces: W10680729) |
|
$ 592.57 | |||||
| 10 | WP2188234 | Door, Flip Up (Replaces: 2188234) |
|
Immediately | $ 51.70 | ||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 6.98 | |||||
| 12 | W10861499 | Gasket, Door (white) (Replaces: W10638675) |
|
Immediately | $ 88.56 | ||||
| 13 | W11106290 | Trim, Shelf Door (Replaces: W10719701) |
|
Immediately | $ 109.15 | ||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 16 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 18 | WP2218113 | Door, Compartment (Replaces: 2218113) |
|
Immediately | $ 45.30 | ||||
| 19 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 58.98 | |||||
| 12A | W11229610 | Gasket, Door (black) (Replaces: W10667843) |
|
Immediately | $ 257.73 | ||||
| 12B | W11574983 | Gasket, Door (grey) (Replaces: W11030682) |
|
$ 79.17 | |||||
| 16A | WP2212651 | Plug, Hole (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 16B | WP2254517 | Plug, Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 20.86 | ||||
| 1A | LW10680725 | Refrigerator Door (includes Door Gasket & Door Cup) (black) (Replaces: W10680725) |
|
$ 618.77 | |||||
| 1B | LW10680727 | Refrigerator Door (includes Door Gasket & Door Cup) (stainless) (Replaces: W10680727) |
|
$ 726.14 | |||||
| 2A | W10174743 | Handle, Cup (black) |
|
$ 13.65 | |||||
| 2B | W11395913 | Handle, Cup (grey) (Replaces: W10240002) |
|
$ 44.16 | |||||
| 5A | W11240749 | Gasket, Door (black) (Replaces: W10678768) |
|
Immediately | $ 257.73 | ||||
| 5B | W11784834 | Gasket, Door (grey) (Replaces: W11030683) |
|
Immediately | $ 191.44 | ||||
| 7A | W11318226 | Badge (black) (Replaces: W11046243) |
|
$ 72.32 | |||||
| 7B | W11182143 | Badge (stainless) (Replaces: W11046241) |
|
$ 68.81 | |||||
| 9A | LW10680728 | Freezer Door (includes Door Gasket & Door Cup (black) (Replaces: W10680728) |
|
$ 593.15 | |||||
| 9B | LW10680730 | Freezer Door (includes Door Gasket & Door Cup (stainless) (Replaces: W10680730) |
|
$ 661.46 |
