Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11095828 Channel, Hood Back Appelez-nous -
2 W11095827 Air Deflector, Right Appelez-nous -
3 W11412771 Deflector, Left Back Appelez-nous -
4 W11095814 Divider, Air Appelez-nous -
5 W11095794 Deflector, Cooling Fan Appelez-nous -
6 W11095804 Hood Deflector, Right Appelez-nous -
7 W11186948 Foil, Lamp Special Order $ 67.55

8 W11405836 Seal, Lighting Special Order $ 18.49

9 W11086300 Housing, Cavity Lighting Appelez-nous -
10 W11409090 Lamp, Halogen Special Order $ 8.57

11 W11108230 Outlet, Cavity (back) Appelez-nous -
12 W11323215 Housing, Tranformer Appelez-nous -
13 W11099491 Holder, Wire Appelez-nous -
14 W11707984 Fuse   (Replaces: W10138793) In-Stock Immediately $ 41.27

15 W10245194 Holder, Fuse Special Order $ 74.84

16 W11126543 Seal, Rubber Appelez-nous -
17 W11652048 Magnetron   (Replaces: W11334527) In-Stock Immediately $ 115.74

18 W11443128 Thermostat, Magnetron   (Replaces: W11378280) Special Order $ 16.80


    View Diagram in Separate Window     Print Icon   Print Part List

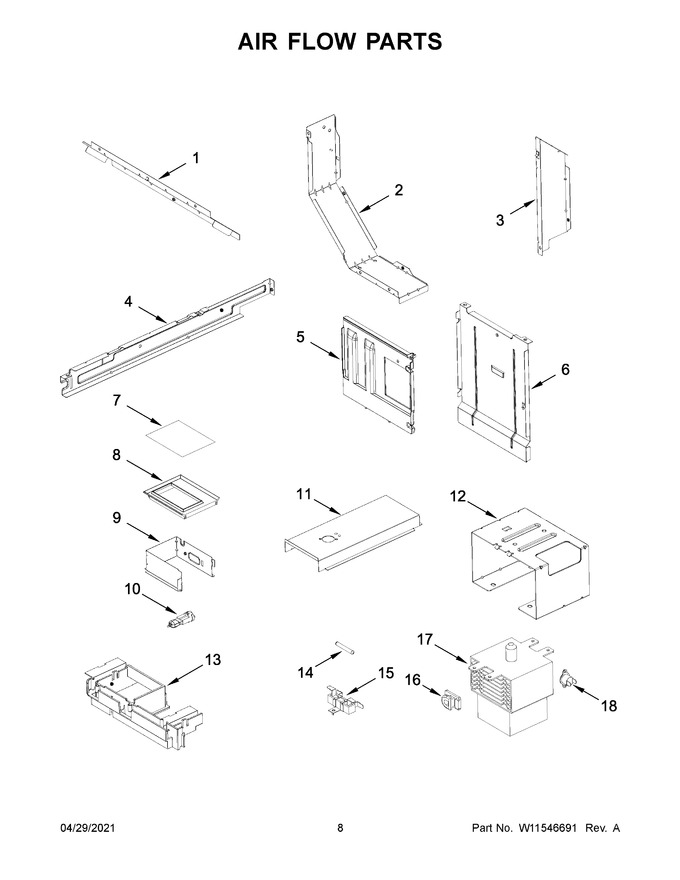

Diagram for WMT50011KS01
