01 - Cover Sheet

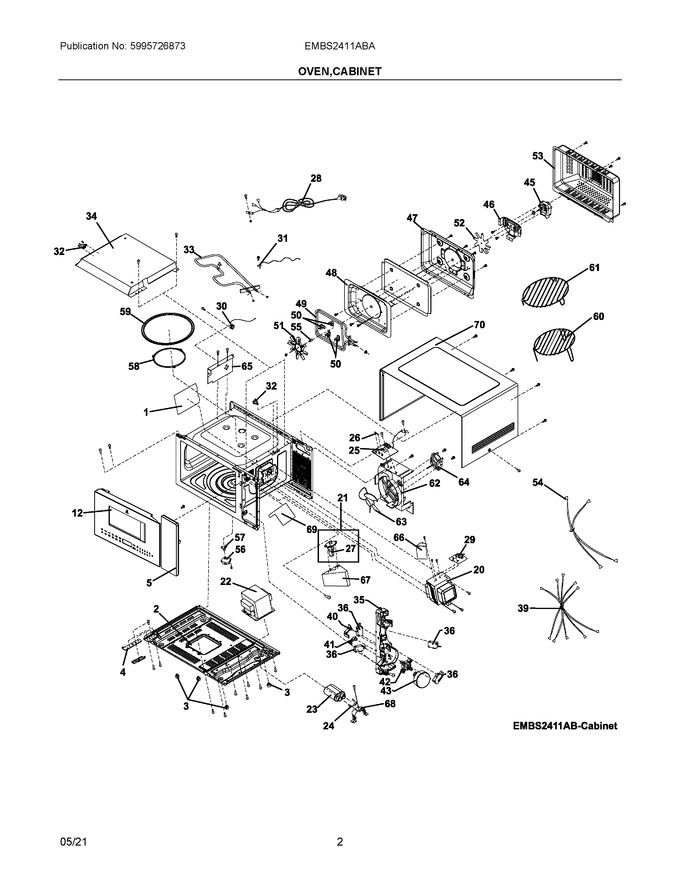

02 - Oven,cabinet
03 - Control Panel,door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505675 | Cover, Waveguide |
|
$ 11.57 | |||||
| 2 | 5304528928 | Base, Bottom |
|
- | |||||
| 3 | 5304528929 | Foot, Cabinet |
|
- | |||||
| 4 | 5304519320 | Hinge, Door, Lower |
|
- | |||||
| 5 | 5304528933 | Control Panel, Assembly, W/pc Board |
|
- | |||||
| 12 | 5304528936 | Door Assembly, Conplete, W/pc Boards |
|
$ 484.66 | |||||
| 20 | 5304509470 | Magnetron, High Voltage |
|
Immediately | $ 436.17 | ||||
| 21 | 5304528944 | Lamp Assembly, W/bulb |
|
Immediately | $ 83.86 | ||||
| 22 | 5304513457 | Transformer, High Voltage |
|
$ 414.67 | |||||
| 23 | 5304528930 | Capacitor, High Voltage |
|
$ 66.51 | |||||
| 24 | 5304515185 | Diode, High Voltage |
|
Immediately | $ 25.83 | ||||
| 25 | 5304525109 | Filter, Noise, Electronic |
|
$ 86.00 | |||||
| 26 | 5304509451 | Fuse |
|
Immediately | $ 13.01 | ||||
| 27 | 5304527876 | Bulb, Lamp |
|
- | |||||
| 28 | 5304520015 | Power Cord, Service |
|
$ 106.27 | |||||
| 29 | 5304528946 | Thermostat, Assembly, Magnetron |
|
- | |||||
| 30 | 5304509652 | Sensor, Humidity |
|
$ 305.46 | |||||
| 31 | 5304528955 | Sensor, Assembly |
|
- | |||||
| 32 | 5304528947 | Thermostat, 160 Deg. |
|
$ 17.35 | |||||
| 33 | 5304528956 | Heater, Searing |
|
$ 113.40 | |||||
| 34 | 5304528957 | Shield, Heat Insulator, Upper |
|
- | |||||
| 35 | 5304528948 | Bracket, Latch Board |
|
$ 60.34 | |||||
| 36 | 5304520019 | Microswitch |
|
$ 25.50 | |||||
| 39 | 5304528951 | Harness, Wiring, Main |
|
- | |||||
| 40 | 5304528950 | Switch, Lever, Upper |
|
- | |||||
| 41 | 5304528949 | Lever, Interlock, Lower |
|
$ 7.09 | |||||
| 42 | 5304528952 | Lever, Latch Board |
|
$ 9.41 | |||||
| 43 | 5304528953 | Motor, Door Open |
|
$ 130.18 | |||||
| 45 | 5304528960 | Motor, Convection Fan, Dc Brushless |
|
- | |||||
| 46 | 5304514298 | Bracket, Convection Mtr |
|
$ 12.29 | |||||
| 47 | 5304528961 | Shield, Heat Insulator, Back, Convection Fan |
|
- | |||||
| 48 | 5304528962 | Cover, Heater, Convection |
|
- | |||||
| 49 | 5304528963 | Heater, Convection |
|
$ 92.84 | |||||
| 50 | 5304528964 | Bracket, Heater, Convection |
|
- | |||||
| 51 | 5304528965 | Blade, Convection Fan |
|
- | |||||
| 52 | 5304514297 | Fan Blade, Cooling |
|
$ 11.13 | |||||
| 53 | 5304528958 | Shield, Heat Insulator, Back |
|
- | |||||
| 54 | 5304528959 | Harness, Wiring, Main |
|
$ 31.81 | |||||
| 55 | 5304528966 | Pin, Cover |
|
- | |||||
| 56 | 5304509440 | Motor, Turntable |
|
$ 118.13 | |||||
| 57 | 5304528954 | Coupler, Turn Table |
|
- | |||||
| 58 | 5304517881 | Ring, Rotating |
|
Immediately | $ 36.72 | ||||
| 59 | 5304509621 | Tray, Turntable |
|
$ 154.61 | |||||
| 60 | 5304528967 | Rack, Round, Tall |
|
- | |||||
| 61 | 5304528968 | Rack, Round, Short |
|
- | |||||
| 62 | 5304519349 | Guide, Fan |
|
- | |||||
| 63 | 5304509471 | Motor, Cooling Fan |
|
Immediately | $ 150.42 | ||||
| 64 | 5304519350 | Blade, Fan |
|
$ 16.92 | |||||
| 65 | 5304519353 | Insulator, Heat |
|
- | |||||
| 66 | 5304513477 | Guide, Air, Magnetron |
|
$ 21.55 | |||||
| 67 | 5304520017 | Cover, Transformer, Wind Guide |
|
- | |||||
| 68 | 5304528931 | Bracket, Hv Capacitor |
|
- | |||||
| 69 | 5304528945 | Cover, Lamp |
|
- | |||||
| 70 | 5304528969 | Wrapper, Outer |
|
- | |||||
| 36A | 5304509460 | Microswitch, Secondary (Replaces: 5304520020) |
|
Immediately | $ 45.27 | ||||
| 36B | 5304520021 | Microswitch, Monitor |
|
Immediately | $ 16.68 |
