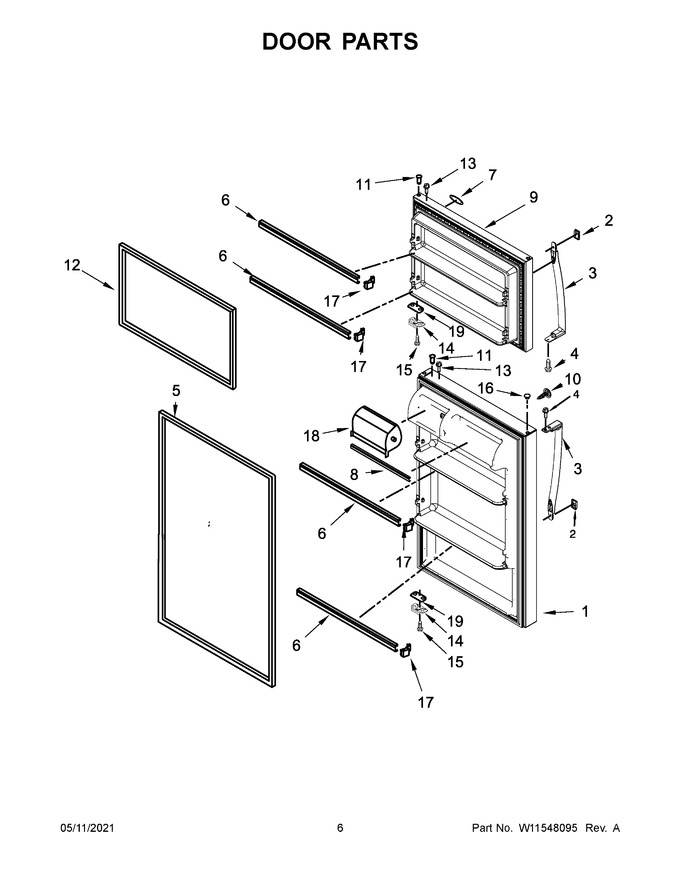

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10573334 | Refrigerator Door (includes Door Gasket) (white) (Replaces: W10573334) |
|
$ 547.55 | |||||
| 2 | WPW10672338 | Handle, Trim (white) (Replaces: W10672338) |
|
Immediately | $ 25.64 | ||||
| 3 | WPW10672333 | Handle, Door (white) (Replaces: W10672333) |
|
Immediately | $ 170.17 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.47 | ||||
| 5 | WP2319265T | Gasket, Door (white) (Replaces: 2264728) |
|
Immediately | $ 166.40 | ||||
| 6 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 109.15 | ||||
| 9 | LW10573340 | Freezer Door (includes Door Gasket) (white) (Replaces: W10573340) |
|
- | |||||
| 10 | W10830984 | Plug, Hole (white) (Replaces: W10663736) |
|
$ 7.18 | |||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 6.98 | |||||
| 12 | WP2319263W | Gasket, Door (white) (Replaces: 2264726) |
|
Immediately | $ 135.93 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.15 | |||||
| 14 | W10492012 | Bracket, Door Stop |
|
$ 14.45 | |||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 16 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 18 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 52.88 | ||||
| 19 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 10A | W10830983 | Plug, Hole (black) (Replaces: W10663737) |
|
$ 16.75 | |||||
| 12A | WP2319263B | Gasket, Door (black) (Replaces: 2264722) |
|
Immediately | $ 229.95 | ||||
| 16A | WP2212651 | Plug, Hole (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 19A | 2258681B | Shim, Door Stop (black) |
|
$ 38.85 | |||||
| 1A | LW10570511 | Refrigerator Door (includes Door Gasket) (black) (Replaces: W10570511) |
|
$ 535.46 | |||||
| 2A | W10838316 | Handle, Trim (black) (Replaces: W10672339) |
|
$ 26.64 | |||||
| 3A | WPW10672334 | Handle, Door (black) (Replaces: W10672334) |
|
$ 194.86 | |||||
| 5A | 2319265B | Gasket, Door (black) (Replaces: 2264724) |
|
$ 282.43 | |||||
| 9A | LW10570946 | Freezer Door (includes Door Gasket) (black) (Replaces: W10570946) |
|
$ 510.18 |
