Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 9750150 Rear Panel Appelez-nous -
5 9750526 Bracket, Lock Appelez-nous -
6 9752404 Oven Lock Assembly Appelez-nous -
7 9780265 Screw, 10-16 X 3/8 Appelez-nous -
8 9752409 Solenoid Appelez-nous -
9 422222 Screw, 10-32 X .31 Appelez-nous -
10 424238 Washer Appelez-nous -
12 9750965 Switch, Interlock Special Order $ 72.00

13 9750887 Screw, 4-40 X 1 Appelez-nous -
14 9750888 Nut (2) Appelez-nous -
15 9750523 Rod, Lock Appelez-nous -
16 9780881 Ballast, Lamp Appelez-nous -
17 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

18 WP112432 Nut,terminal Block   (Replaces: 112432) Special Order $ 7.16

19 98884 Screw, 10-16 X 1 Appelez-nous -
22 9752462 Single Position Device (not Serviced) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

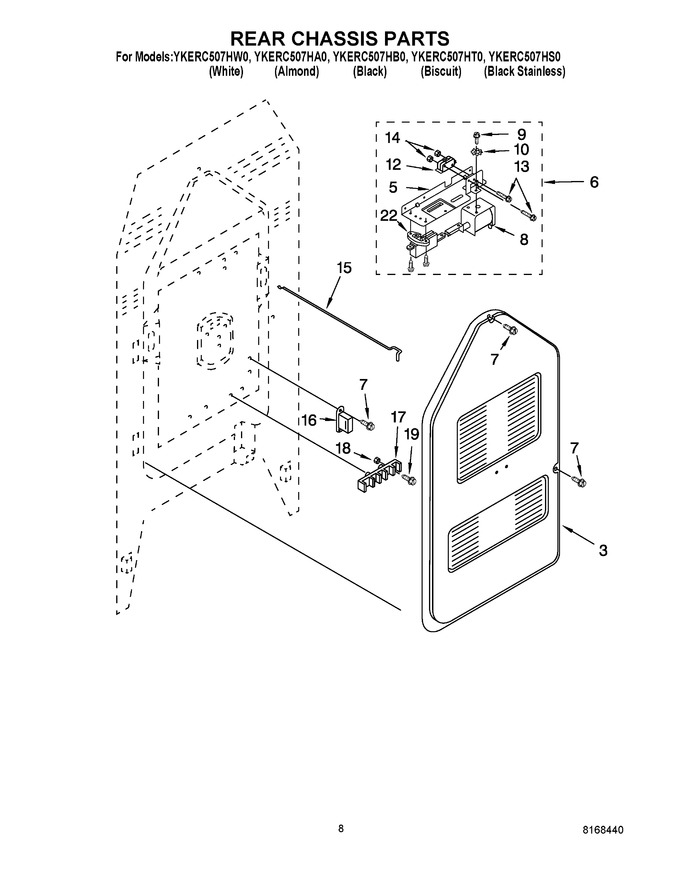

Diagram for YKERC507HW0
